PTS-60-WH | Sensor Switch | Lighting Controls

PROG. INTERVAL TIMER SWITCH, LINE V, 60MIN, WHITE

Brand:Sensor Switch

MPN:PTS-60-WH

SKU:PTS-60-WH

List Price:

$178.00

Today's Price:

$92.56

Lead time of > 15 days. Chat with Kele experts now

product specifications

Mount

Wall

Range

0 - 60 min

Color

White

Supply Voltage (Nominal)

120 VAC

product series specifications

Supply Voltage: 120/277/347 VAC, 50/60Hz

Operation: Push Button to desired time or ON/OFF to default time, On activation the contacts transfer from normal

Relay Output: SPST, 1-N.O.

Relay Current: No minimum load

800W @120 VAC

1200W @277 VAC

1500W @347 VAC

1/4 Hp @125 VAC

Special Functions:

Off Blink warning 1 or 2 min, (Can be disabled)

Off Beep warning (Can be disabled)

Ticking countdown sound (Can be enabled .5s/tick)

Indicators: Green LED switch time status, Last 30 seconds LED flashes

Timers:

Times can be reset in the field

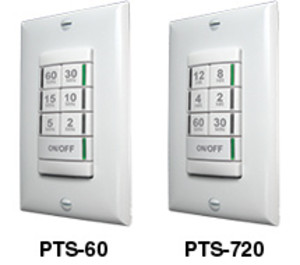

PTS-60: 2, 5, 10, 15, 30, 60 minutes or

PTS-720: 30m, 60m, 2h, 4h, 8h, 12h

Operating Temperature: 14 to 160°F (-10 to 71°C), -40°C Opt. (-LT)

Operating Humidity: 20-90% non-condensing

Wiring Terminations: 3 Pigtail wires 12 AWG, (Neutral not needed)

Mounting: Vertical Decorator, Plate included

Color: Plastic plate in Grey, Ivory, White or Almond per order

Enclosure Rating: NEMA 1

Dimensions: 4.2"H x 1.8"W x 1.5"D, (10.67 x 4.57 x 3.81 cm)

Weight: 0.32 lb. (0.15 Kg)

Approvals: ETL listed, RoHS, Title 24 (PTS-60)

Warranty: 5 year limited

product series features

  • No neutral connection required
  • Push-button programmable w/o removing switch plate
  • Fixed or Adjustable Preset Times
  • LED flashes for last 30 sec
  • Green LED indicators
  • Wall plate included

more information & related documents

Series Description

The Sensor Switch PTS Series electronic auto shut-off timer switches provide a simple to use and simple to apply lighting control alternative to wall switch occupancy sensors. These elegant decorator style wall stations each provide six preset countdown timer selections as well as an on/off push-button.

Kele Description

PROG. INTERVAL TIMER SWITCH, LINE V, 60MIN, WHITE
