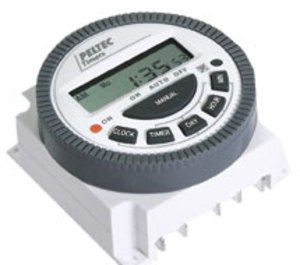

619-BRKT | Peltec | Lighting Controls

Supply Voltage: AC and DC power per order, 50/60Hz

619-1 100-130 VAC, 30 mA @120VAC

619-2 200-250 VAC, 50 mA @24 VAC

619-3 24VAC @18mA, or 24VDC @5.2mA

619-4 12VAC @16mA, or 12VDC @5.3mA

Operation: 6 buttons w/menu display

Relay Output Configuration: SPDT, Dry contact

Contact Current:

Resistive: 16A @ 30 VDC, 20A @ 125 VAC ,16A @ 250 VAC

Ballast: 8A @ 250 VAC

Fan: 0.5 HP @ 125/250 VAC

Manual Override: Push button

Clock: 12 hour

Clock Accuracy: ± 1 second/day

Special Functions: None

Indicators: Red LED for energized relay

Battery Backup: CR2032, replace @ 2 years

Schedules: 15, (full week, 7 individual days, 7 multiple day combinations), 8 events per day

Display: 1 line LCD display, w/clear dust cover

Local Set-up & Control: 6-Push Buttons for menu manipulation

SCCR: None

Operating Temperature: 14° to 131°F (-10° to 55°C)

Operating Humidity: 5% to 95% Non-condensing

Wiring Terminations: Blade terminal, 0.25" quick connects, 14 to 12 AWG, (included)

Mounting: Surface or panel mount

Enclosure Rating: NEMA 1

Dimensions: 2.38" H x 2.38" W x 1.38" D (6.0 x 6.0 x 3.7 cm)

Weight: 0.25 lbs (0.11 Kg)

Approvals: UL (File# E166259), CE, RoHS

Warranty: 1 year
