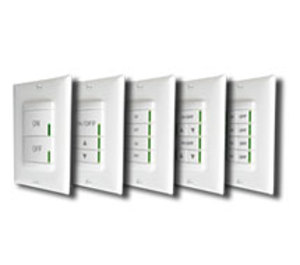

* product series image displayed

SPODM-D-WH | Sensor Switch | Lighting Controls

INTERFACE SWITCH,1 SWITCH/AUTO ON,LV,DIMMING,WHITE

Brand:Sensor Switch

MPN:SPODM-D-WH

SKU:SPODM-D-WH

List Price:

$170.00

Today's Price:

$88.40

catalog page

Lead time of 11 days. Chat with Kele experts now

product specifications

Mount

Wall

Type

1 Switch

Color

White

Supply Voltage (Nominal)

24 VAC

product series specifications

Supply Voltage: 12-24 VAC/VDC @5mA

Power Supply: PP20 power pack recommended

Communications Protocol:

Switch Rating:

Dacora® button ON/OFF

S1T15, SD1T15: SPST N.O., 24VDC @1A

S1T20, SD1T20 Two SPST N.O., 24VDC @1A

S215, SD215

Dimming Load (Opt -D): Sinks <20mA (˜ 40 Ballasts @.5mA ea)

Motion Input: 24VDC input indicates occupancy

Switch Buttons: Push buttons ON & OFF

Status indication: Green LED

Operating Temperature: 14 to 160°F (-10 to 71°C)

Operating Humidity: 20% to 90% RH, non-condensing

Wiring Terminations: 6-20 AWG pigtails (Color coded)

Mounting: Typical vertical switch box w/plate

Color: Ivory (IV), White (WH), Black (BL), Almond (AL), Grey (GY)

Enclosure Rating: NEMA 1, Box by others

Dimensions: STD. Decora®, Plate = 2.78"W x 4.5"H

Weight: 0.32 lb (0.15 kg)

Approvals: Class 2 Low Voltage, Title 24 compliant

Warranty: 5 year limited

product series features

Enables standard occupancy sensors to be used for manual on operation
Alternative usage as override switch for auto-on applicaitons
Single gang decorator style with either 1 or 2 on/off switches
Soft-click push-buttons
Programmable without removing switch plate
Wall plate included

more information & related documents

Series Description

The Sensor Switch SPODM Series of low voltage wall stations interface with standard Sensor Switch occupancy sensors and power packs in order to implement a wide range of single and bi-level switching applications. These switch devices provide an elegant and cost effective way of deploying bi-level lighting control that meet energy and building codes without having to source special sensors or power packs.

Kele Description

INTERFACE SWITCH,1 SWITCH/AUTO ON,LV,DIMMING,WHITE

Manufacturer

Sensor Switch
