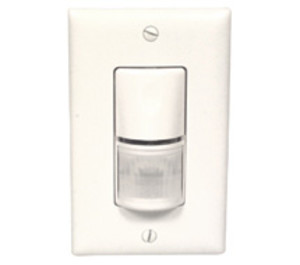

WS-301-W-P | Watt Stopper Legrand | Lighting Controls
120/277 VAC OCC SENSOR ONLY, WHITE. WITH PLATE
Brand:Watt Stopper Legrand
MPN:WS-301-W-P
SKU:WS-301-W-P
List Price:
$160.00
Today's Price:
$83.20
Log in for customized pricingproduct series specifications
Contactor Tungsten: Up to 800W @ 120 VAC
Ambient Light: From 2 to 200 fc
Coverage Pattern: Major motion 35' x 30', Minor motion 20' x 15'
Time Delay Adjust: Digital time delay from 30 sec to 30 min.
Operating Temperature: 32° to 98°F (0° to 36°C)
Dimensions: 2.6" x 1.7" x 1.55" (166.0 x 4.31 x 39.4 mm)
Additional Specifications: Switch positions Auto/Off (on/off during override)
Approvals: UL and cUL listed, File #E101196
Weight: 0.35 lb (0.16 kg)
Warranty: 5 years
product series features
- Advanced PIR technology
- Shallow housing and flying leads for quick installation
- Adjustable time delay
- Integrated light level sensor
- Adjustable unit sensitivity
- No minimum load requirement
- No leakage to load in off mode
- Voltage drop protection
- Compatible with all ballasts and incandescent lighting
- Five year warranty
- Includes single gang cover plate
more information & related documents
Series Description
The WattStopper WS Series occupancy sensor is a decorator style automatic wall switch with an attractive, low profile design. It replaces a standard wall switch to turn lighting on when a room is occupied and off when the room is vacant. The WS Series has advanced passive infrared (PIR) technology and a two-level lens to sense when a room is occupied. It also contains an adjustable light level sensor to keep lights off when ambient light is adequate. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
120/277 VAC OCC SENSOR ONLY, WHITE. WITH PLATE
Manufacturer
Watt Stopper Legrand
Related Documents
WS Series Instruction Manual
