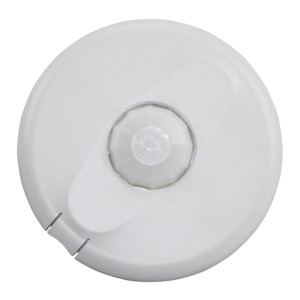

CI-355 | Watt Stopper Legrand | Lighting Controls

Supply Voltage: 24 VDC @ 20 mA, ±10%

Output:

Aux Output Motion initiated (Int.) 24 VDC output

SPDT Motion Int. contact, 24V (AC/DC) @ 1A

Light Output Adjustable 4-190 fc to initiate a 24VDC output

Technology: Temperature compensated, Passive Infra-Red (PIR) w/ Fresnel lens

Occupied Mode (Occ): Occupied-Auto ON wTime Delay OFF

Approximate Coverage Pattern: CI for ceiling mount, CX for Wall or ceiling mount

CI-200 360°, 8” ceiling/44" dia circle, 12” ceiling/74”dia circle

CI-200-1 360°, 8” ceiling/24”dia circle, 12”ceiling/34”dia circle

CX-100 90°, 10” wall mnt./50”wedge

CX-100-1 43°, 10” wall mnt./50”-90' wedge

CX-100-3 3°, 30” ceiling aisle way mnt./67”wedge, 3°, 15” ceiling aisle way mnt./33”wedge

Sensitivity:

CI-200 2 Dip switch settings Min or Max

CX-100 POT Adjustment under cover

Light SP Adjustable 4 - 190 fc to initiate a 24VDC output

Override:

Dip switch (ON = Forced motion simulation)

OFF Delay Time (TD): DIP switches (15 seconds to 30 minutes)

Indication: Red LED (ON w/ motion)

Mounting: Ceiling or wall mount

CI-200 Ceiling 2.75”to 3” hole

CX-100 Wall or ceiling w/90° swivel bracket

Color: White

Operating Temperature: 32° to 131°F (0° to 55‚°C)

Operating Humidity: 10-95% RH non-condensing

Wiring: 8 Pig tails

Enclosure Rating: NEMA 1

Dimensions:

CI-200 3.3” dia x 2.2” deep (8.5 x 5.6 cm), Sensor Protrudes 0.4" from ceiling

CX-100 3.3” W x 3."L x 2.1"D (8.4 x 8.4 x 5.3 cm)

Weight: 1.0 lb (0.46 Kg)

Approvals: UL File #E101196

Warranty: 5 year
