Supply Voltage: 12-24 VAC @ 0.1 VA, 24 VDC, @ 4mA (16mA w/ relay option)

Relay Output: WV Motion initiated (Int.) 24VDC output @200mA

WV-x-R: Motion Int. contact, SPDT 40V (AC/DC) @1A

W/ PP20: 120/277 VAC @20A switching (15VDC out for sensor)

Technology: Single or dual technology sensors (per order)

WV-16: Infra-Red (IR) w/ Fresnel lens

WV-PDT: Infra-Red (IR) w/ Fresnel lens and Sonic Microphone

Occupied Mode (Occ): Occ.-Auto ON w/Either technologies w/TD OFF

Special Features: Relay contact, and Photocell versions available

Approximate Coverage Pattern: Corner @9' /40-70' Semi circle (120° wedge)

OFF Delay Time (TD): 5 settings from 0 to 20 minutes

Indication: Green LED for set-up

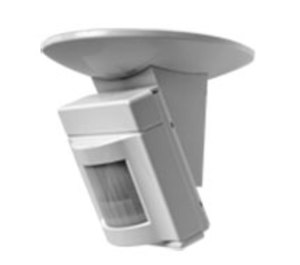

Mounting: Direct Wall/Corner, (Ceiling w/WV-BR braket), Box Mount (Octagonal or single gang)

Color: White

Operating Temperature: 14° to 160°F (-10° to 71°C)

Operating Humidity: 20 to 90% non-condensing

Wiring: 3 or 7 wire Pig tails (see wiring)

Enclosure Rating: NEMA 1

Dimensions: 3.6"W x 3.0"H x 1.75"D (9.14 x 7.62 x 4.45 cm)

Weight: 0.32 lb (0.15 Kg)

Approvals: UL File #E167435, RoHs

Warranty: 5 year limited
