PP20 | Sensor Switch | Lighting Controls

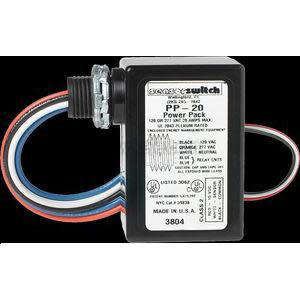

Power Pack with 20 Amp Relay, 15-24 VDC, 70-110 ma Output
Brand:Sensor Switch
MPN:PP20
SKU:PP20
product specifications
Mount
Hub
Type
Power Pack
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage:
CM-(9,10): 12-24 VAC 40/60 Hz @ 0.01 VA, 12-24 VDC @ 4 mA
CM-(9,10)-R: 12-24 VAC 40/60 Hz @ 0.04 VA, 12-24 VDC @ 16 mA
CMR: 120/277 VAC @800/1200 W, 50/60 Hz
Output:
CM-(9,10): Motion initiated (Int.) 24VDC output @200mA
CM-(9,10)-R: Motion Int. contact, SPDT 40V (AC/DC) @1A
CMR: Motion Int., SPST relay 120/277VAC, @800/1200W, 1/4hp
Technology: Single or dual technology sensors (per order)
CMx-(9,10): Infra-Red (IR) w/ Fresnel lens
CMx-PDT: Infra-Red (IR) w/ Fresnel lens and Sonic Microphone
Occupied Mode (Occ): Occ.-Auto ON w/Single or both technologies with TD OFF
Special Features: Dimming, Photocell & 347V versions available
Approximate Coverage: 360° omni directional CMx-9: Ceiling @9' /24' dia circle (56° angle) CMx-10: Ceiling @9' /56' dia circle (67° angle)
OFF Delay Time (TD): 9 settings from 5 seconds to 20 minutes
Indication: Green LED for set-up
Mounting: Direct Ceiling surface Box Mount (Octagonal or single gang)
Color: White
Operating Temperature: 14° to 160°F (-10° to 71°C), Opt. -4° (-20°C)
Operating Humidity: 20 to 90% non-condensing
Wiring: 3 or 8 wire Pig tails (see wiring)
Enclosure Rating: NEMA 1
Dimensions: 4.55" Dia. x 1.55" Deep (11.56 x 3.94 cm)
Weight: 0.38 lb (0.17 Kg)
Approvals: UL File #E167435, RoHs
Warranty: 5 year limited
product series features
- 100% digital PIR and optional microphonics detection
- Push-button programmable
- User adjustable time delays (30 sec to 20 min)
- No field calibration or sensitivity adjustments required
- Green LED indicator
more information & related documents
Series Description
The Sensor Switch CM Series occupancy sensor offers amazing peformance and sensitivity to small motions. There are variety of model options to fit the applcation needs. The CM 9 models offers standard range PIR sensor for smaller rooms and the CM 10 models provide extended range for larger spaces. The CM PDT models offers dual technolgoy PIR with Microphonics for excellent detection. The CMR line voltage models are economical solution for automatic lighting control with no power pack needed. The CM series is light weight and ceiling mounted with 360 degree coverage pattern.
Kele Description
POWER PACK-RELAY CIRCUIT PROTECTION, 120/277 VAC
Manufacturer
Sensor Switch
CM Series DS_MP-20
