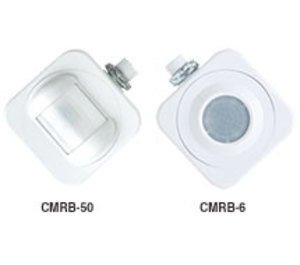

* product series image displayed

CMRB-6-KIT | Sensor Switch | Lighting Controls

HIGH BAY 360 SENSOR-FIXTURE MOUNT, LINE VOLT, BRA

Brand:Sensor Switch

MPN:CMRB-6-KIT

SKU:CMRB-6-KIT

List Price:

$192.00

Today's Price:

$99.84

catalog page

Lead time of 8 days. Chat with Kele experts now

product specifications

Mount

Ceiling

Color

White

Sensing Type

Infrared

Supply Voltage (Nominal)

120 VAC

product series specifications

Supply Voltage: 120/277 VAC @800/1200 W

Relay Output: Motion initiated (Int.) Relay SPST, 6.6A, Load 120/277VAC, @800/1200W, 1/4hp

Technology: Infra-Red (IR) w/ Fresnel lens

Occupied Mode (Occ): Occ.-Auto ON w/Either technologies w/TD OFF

Special Features: Dimming, Photocell & 347V versions available

Approximate Coverage Pattern:

Sensor in middle, 360°Omni or Thin Isle way directional

CMRB-6 Ceiling Omni @15' H, 20' dia circle

CMRB-6 Ceiling Omni @45' H, 30' dia circle

CMRB-50 Ceiling Isle @40' H x 14' W x 100', 10°angle

CMRB-50 Ceiling Isle @15' H x 14' W x 32', 10° angle

Sensitivity: None required

Override: None

OFF Delay Time (TD): 9 settings from 30 seconds to 20 minutes

Indication: Green LED for set-up

Mounting: 1/2? MNPT Thread, FB3 bracket for offset below lamps

Color: White

Operating Temperature: 14° to 160°F (-10° to 71°C), Opt. -40° F/C

Operating Humidity: 20 to 90% non-condensing

Wiring: 3 or 5 wire, 36" Pig tails (see wiring)

Enclosure Rating: Indoor, no rating

Dimensions: 3.63"H x 3.63"W x 1.50"D, (9.22 x 9.22 x 3.81 cm)

Weight: 0.38 lb (0.17 Kg)

Approvals: UL File #E167435, RoHs

Warranty: 5 year limited

product series features

100% digital PIR detection with excellent RF immunity
Self-contained relay, no power pack needed
No minimum load requirements
Compatible w/electronic and magnetic ballasts, CFLs, LED, and incandescents
Interchangeable hot and load wires
Push-button programmable
Non-volatile settings memory
Adjustable time delays
No field calibration or sensitivity adjustments required
Convenient test mode
100 hr lamp burn-in timer
Green LED indicator

more information & related documents

Series Description

The Sensor Switch CMRB Series is a fixture mounted, high bay, line voltage occupancy sensor. The CMRB 6 provides Passive Infrared (PIR) occupancy detection over a 15-30 ft (4.57-9.1m) radial coverage pattern that overlaps the areas lit by a typical high bay fixture when mounted at 15 to 45 ft (4.57 to 13.72m) heights. The CMRB 50 Series High Bay Aisleway occupancy sensor provides bi-directional detection extending 50 ft (15.24m) in either direction when mounted at height of 40 ft (12.19m).

Kele Description

HIGH BAY 360 SENSOR-FIXTURE MOUNT, LINE VOLT, BRA
