CM-10 | Sensor Switch | Lighting Controls

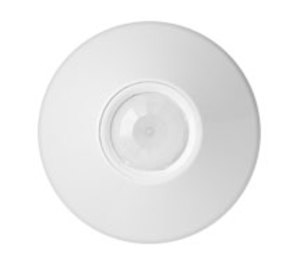

EXT. RANGE 360 SENSOR-CEILING MOUNT, LOW VOLT, PIR
Brand:Sensor Switch
MPN:CM-10
SKU:CM-10
product specifications
Mount
Ceiling
Color
White
Sensing Type
Infrared
Supply Voltage (Nominal)
24 VAC
product series specifications
- Supply Voltage:
- :
- CM-(9,10) 12-24 VAC 40/60 Hz @ 0.01 VA, 12-24 VDC @ 4 mA
- :
- CM-(9,10)-R 12-24 VAC 40/60 Hz @ 0.04 VA, 12-24 VDC @ 16 mA
- :
- CMR 120/277 VAC @800/1200 W, 50/60 Hz
- Output:
- :
- CM-(9,10) Motion initiated (Int.) 24VDC output @200mA
- :
- CM-(9,10)-R Motion Int. contact, SPDT 40V (AC/DC) @1A
- :
- CMR Motion Int., SPST relay 120/277VAC, @800/1200W, 1/4hp
- Technology:
- Single or dual technology sensors (per order)
- :
- CMx-(9,10) Infra-Red (IR) w/ Fresnel lens
- :
- CMx-PDT Infra-Red (IR) w/ Fresnel lens and Sonic Microphone
- Occupied Mode (Occ):
- Occ.-Auto ON w/Single or both technologies with TD OFF
- Special Features:
- Dimming, Photocell & 347V versions available
- Approximate Coverage:
- 360‚Å° omni directional
- :
- CMx-9 Ceiling @9' /24' dia circle (56° angle)
- :
- CMx-10 Ceiling @9' /56' dia circle (67° angle)
- OFF Delay Time (TD):
- 9 settings from 5 seconds to 20 minutes
- Indication:
- Green LED for set-up
- Mounting:
- Direct Ceiling surface
- :
- Box Mount (Octagonal or single gang)
- Color:
- White
- Operating Temperature:
- 14°to 160? F (-10° to 71‚ÑÉ), Opt. -4° (-20‚ÑÉ)
- Operating Humidity:
- 20 to 90% non-condensing
- Wiring:
- 3 or 8 wire Pig tails (see wiring)
- Enclosure Rating:
- NEMA 1
- Dimensions:
- 4.55‚Ä= Dia. x 1.55‚Ä= Deep (11.56 x 3.94 cm)
- Weight:
- 0.38 lb (0.17 Kg)
- Approvals:
- UL File #E167435, RoHs
- Warranty:
- 5 year limited
product series features
- 100% digital PIR and optional microphonics detection
- Push-button programmable
- User adjustable time delays (30 sec to 20 min)
- No field calibration or sensitivity adjustments required
- Green LED indicator
more information & related documents
Series Description
The Sensor Switch CM Series occupancy sensor offers amazing peformance and sensitivity to small motions. There are variety of model options to fit the applcation needs. The CM 9 models offers standard range PIR sensor for smaller rooms and the CM 10 models provide extended range for larger spaces. The CM PDT models offers dual technolgoy PIR with Microphonics for excellent detection. The CMR line voltage models are economical solution for automatic lighting control with no power pack needed. The CM series is light weight and ceiling mounted with 360 degree coverage pattern.
Kele Description
EXT. RANGE 360 SENSOR-CEILING MOUNT, LOW VOLT, PIR
Manufacturer
Sensor Switch
CM Series DS_MP-20
