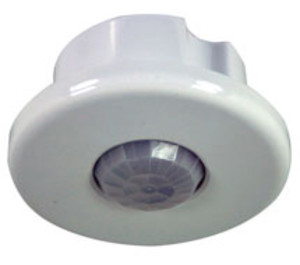

* product series image displayed

LX-24-5PK | Kele | Lighting Controls

PIR CEILING MOUNT SENSOR 24 VDC-5 PACK

Brand:Kele

MPN:LX-24-5PK

SKU:LX-24-5PK

List Price:

$-.--

Today's Price:

$-.--

catalog page

Lead time of 0 days. Chat with Kele experts now

product specifications

Mount

Ceiling

Color

White

Sensing Type

Infrared

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage: 24 VAC ±10% @ 0.9 VA; 24 VDC ±10% @ 37mA

Relay Output: SPDT, 24V (AC/DC) @1A

Technology: Passive Infra-Red (PIR) w/ Fresnel lens

Occupied Mode (Occ): Occupied-Auto ON w/Time Delay OFF

Approximate Coverage Pattern: 360 degrees, 1200² ft., 8' ceiling/8 m (24' max coverage)

Sensitivity: Selectable High or Low

Override: Dip switch 4 (ON = Relay Energized)

OFF Delay Time (TD): Selectable, 30s, 10m, 20m or 30m

Indication: Red LED (ON w/ motion)

Mounting: Ceiling 2.75" to 3" hole

Color: White

Operating Temperature: 32° to 98°F (0°to 36°C)

Operating Humidity: 10-95% RH non-condensing

Wiring: 5 Pig tails

Enclosure Rating: Indoor, No rating

Dimensions: 3.3" dia x 2.2" deep (8.5 x 5.6 cm), Extends 0.4" from ceiling

Weight: 1.0 lb (0.46 Kg)

Warranty: 5 year

product series features

Passive infrared technology
Adjustable time delay
Adjustable sensitivity
Isolated SPDT relay
360-degree coverage up to 1200 ft2
Red LED to indicate occupancy detection
Five-year warranty

more information & related documents

Series Description

The Model LX-24 passive infrared occupancy sensor, PIR, is specifically designed to interface with building automation systems, BAS, through an internal isolated relay. The ceiling mount PIR sensor features a user-adjustable time delay (30 seconds to 30 minutes) on deactivation may be programmed through DIP switches to prevent unnecessary cycling. The Model LX-24 includes two levels of sensitivity selectable through DIP switches.

Kele Description

PIR CEILING MOUNT SENSOR 24 VDC-5 PACK

Manufacturer

Kele
