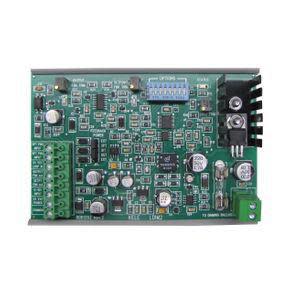

LDIM2

LDIM2 | Kele | Lighting Controls

Electronic Dimmable Ballast Controller Snap-Track Mount

Brand:Kele

MPN:LDIM2

SKU:LDIM2

List Price:

$721.00

Today's Price:

$374.92



237 in stock
catalog page

product specifications

Type

Dimming Controller

Mounting Location

Snap Track

Supply Voltage (Nominal)

24 VAC

product series specifications

    Supply Voltage:
  • 24 VAC ±10% @ 250 mA
    Signal Input:
  • 0-10 VDC, 2-10 VDC @ 50K‚Ѷ, or
    :
  • PWM contact(Adj. Timebase) 0.1 to 25.6 seconds
    Signal Output:
  • Light dimming, 0-10 VDC, sinking, 0.5A Max
    :
  • Fuse 1A fast blow (20 x 5 mm Fuse. GF-1)
    :
  • Isolation Output signal Isolated from Input signal
    :
  • Fail Safe Max 10V out on input signal loss
    Manual Override:
  • 40% to 100% (DIP switch adjustable)
    Feed Back:
  • Requires 24VDC @ ‚Ä=Power IN‚Ä= terminal
    :
  • Setpoint 4-20 mA (Sourcing), @650‚Ѷ
    :
  • Output Signal 4-20 mA (Sourcing), @650‚Ѷ
    Set-Up:
  • 8 DIP switches (Adj. on the fly)
    Visual Indication:
  • Three Status LED's
    :
  • LED 1 (RED) Output feedback loop (dim to bright)
    :
  • LED 2 (RED) Setpoint feedback loop (dim to bright)
    :
  • LED 3 (GRN) Off = No PWR, Solid On = normal,
    :
  • Blinking = See below
    Operating Temperature:
  • 14° to 122‚Ñâ (-10° to 50‚ÑÉ)
    Operating Humidity:
  • 5 to 95% RH non-condensing
    Wiring Terminations:
  • 8-Terminals, 22 to 14 AWG wire
    :
  • 2 Ballast Signal Terminals, 22 AWG to 10 AWG
    Mounting:
  • Snap Track, (3.25 x 6") Included
    Dimensions:
  • 3.25‚Ä=W x 5‚Ä=L x 1.8‚Ä=H
    :
  • (8.25 x 12.7 x 4.57 cm)
    Weight:
  • 0.75 lb (0.34 Kg)
    Warranty:
  • 2 years

product series features

  • Control output 0-10 VDC dimmable fluorescent ballasts or LED driver modules
  • BAS Setpoint (0, 2-10V or PWM)
  • 4-20 mA feedback for light level setpoint and output monitoring
  • Output is electrically isolated from input
  • Fail-safe, output to full-bright on lost signal
  • Manual override of setpoint input
  • 3.25 in x 5.00 in. snap-track mount

more information & related documents

Series Description

The Kele Model LDIM2 is a fluorescent/LED dimming control for dimmable electronic fluorescent ballasts/LED driver module. It is designed for single 0-10V dimming output with a 0-10V input or a PWM input from controllers. Feedback is provided for light level setpoint and light level output. The LDIM2 output interfaces with electronic fluorescent ballasts/LED driver modules designed for an analog 0-10V sinking input.
