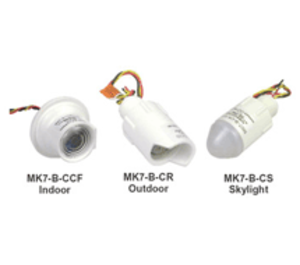

MK7-B-CCF-VTI | PLC-Multipoint | Lighting Controls

Supply Voltage: 12-24 VDC, 20 mA max

Analog Output: (model specific) 4-20 mA @ 850 O, 0/1-5VDC @ 5KO min, 0/1-10VDC @ 5KO min

Indoor (-CCF): 0-100 fc = Analog selected output

Outdoor (-CR): 0-250 fc = Analog selected output

Skylight (-CS): 10-2000 fc = Analog selected output

Sensor type: Blue-enhanced photo-diode

Accuracy: Overall ±12%

Operating Temp: ±10%

Linearity: ±2%

Repeatability: ±0.5%

Range Adjust: Can be field adjusted

Indoor (-CCF): 0-100 fc Factory Calibrated, Adjustable 0 to 750 fc

Outdoor (-CR): 0-250 fc Factory Calibrated, Adjustable 0 to 750 fc

Skylight (-CS): 0-2000 fc Factory Calibrated, Adjustable 0 to 7500 fc

Response Time Adjust:

Protective Lens: Non-polarized plastic

Indoor (-CCF): Clear Fresnel lens

Outdoor (-CR): Clear flat lens

Skylight (-CS): Opaque dark dome

Operating Temperature: -40° to 140°F (-40° to 60°C)

Operating Humidity: 10% to 95% Non-condensing

Wiring Terminations: 3 wire 18 AWG pigtails

Mounting:

Indoor (-CCF): Smooth back for ceiling down mounting w/double stick tape

Outdoor (-CR): 1/2" MNPT for Horizontal mount

Skylight (-CS): 1/2" MNPT for Vertical-up mount

Enclosure Rating:

Indoor (-CCF) and Skylight (-CS): NEMA 1

Outdoor (-CR): NEMA 3R

Dimensions:

Indoor (-CCF): 1.5" x 1.5" x 1.7" (38 x 38 x 43 mm)

Outdoor (-CR): 1.4" x 1.4" x 2.4" (36 x 36 x 61 mm)

Skylight (-CS): 1.3" x 1.3" x 2.8" (33 x 33 x 71 mm)

Weight: 0.13 lb (0.06 Kg)

Approvals: ETL/UL916, NEC Class 2, RoHS, California Title 24 Compliant

Warranty: 2 year
