DEVICE OPERATION:

Supply Power:

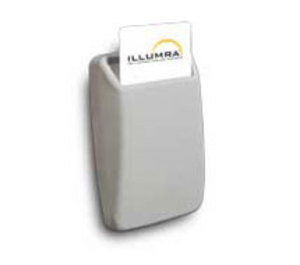

E9T-C2AWH: Electrodynamic energy generator from card insertion

E9T-S2H: Self-powered when switch is pressed

Sensor Type: Mechanical switch

Credit Card Size: 2.13" W x 3.375" H x 0.03" Thick

Note: Any card will work if it fits into the slot

Hand Held Remote: Push 1 of 4 buttons (Rockers)

Transmitted Range Value:

E9T-C2AWH: Open/Closed

E9T-S2H: 50-150 ft

Accuracy: Digital On/Off

Mounting: Screws or adhesive to wall (not included)

Operating Temperature: -13° to 149°F (-25° to 65°C)

Operating Humidity: 0 to 95% RH, Non-condensing

Construction: ABS Plastic, UL94 V-0

Color: White

Enclosure Rating: NEMA 1 (IP40)

Dimensions:

E9T-C2AWH: 3.05"W x 4.65"H x 1.04"D (7.75 x 11.81 x 2.64 cm)

E9T-S2H: 1.85"W x 3.15"H x 0.7"D (4.70 x 8.00 x 1.78 cm)

Weight:

E9T-C2AWH: 0.3 lbs (0.14 Kg)

E9T-S2H: 0.15 lbs (0.07 Kg)

Warranty: 3 years

RADIO:

Protocol: EnOcean

Frequency: 902 MHz, (Classic 315 MHz available on request)

Modulation: Direct Sequence Spread Spectrum (DSSS)

Transmit Power: 10 mW (10 dBm)

Open Air Range: 150 ft (45m)

Transmission time: 20ms

Transmission Interval: Transmits on COS during card insertion

Antenna: Internal

Channels: One

Device Addresses: 100 transmissions per minute

Programming: Any card insertion in field

EnOcean Equipment Profile: EEP #, Defines payload and control sequence use,

F6-02-01, Light & Blind CTRL, Appl 1,

F6-02-02, Light & Blind CTRL, Appl 2:

Repeater Capable: Yes, (Can increase open air range x2)

Compliance:

E9T-C2AWH: IC# 5713A-PTM200C, 5713A-PTM210C or 5713A-PTM210U,

RoHS, CE:

E9T-S2H: FCC, IC, RoHS
