WD-1B-C | Kele | Leak
Water Detector SPDT W/Deenergized Relay
Brand:Kele
MPN:WD-1B-C
SKU:WD-1B-C
product specifications
Application
Water
Indication
LED
Type
Direct
Supply Voltage (Nominal)
24 VAC, 24 VDC
product series specifications
- Supply Voltage:
- 11-27 VAC @ 1.7 VA; 11-27 VDC @ 30 mA
- Relay Type:
- SPDT
- Relay Rating:
- 1 A @ 24 VAC/VDC, 1/2 A @ 120 VAC
- Display:
- Green LED = Power
- :
- Red LED = Alarm
- Probe:
- Gold plated, 1.5‚Ä= adjustable
- Operating Temperature:
- 32° to 158‚Ñâ (0° to 70‚ÑÉ)
- Enclosure Rating:
- NEMA 4, Cast aluminum, weather resistant with adjustable legs
- Dimensions:
- 4.3"H X 3.75"W X 4.5"L (10.7 X 9.5 X 11.4 cm)
- Weight:
- 0.98 lb (6.44 Kg)
- Approvals:
- CE
- Warranty:
- 1 year
product series features
- Weather resistant enclosure
- Easy to install
- SPDT alarm contacts
- 11-27 VAC/DC(50/60 Hz)
- Reliable operation
- LEDs for power and alarm indication (green, red)
- Adjustable detection level
more information & related documents
Series Description

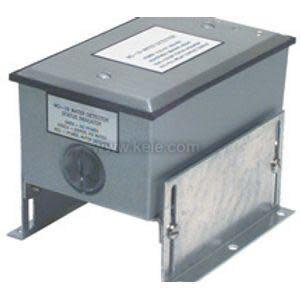

The WD-1B water detector features gold-plated probes and microchip technology for dependable water detection of conductive liquids. The Model WD-1B can be operated from 11-27 Volt AC or 11-27 Volt DC in HVAC and Building Automation System, BAS, applications. For application flexibility, SPDT contacts connect to a monitoring system. A height-adjustable, cast-aluminum, weatherproof enclosure comes standard. A green LED visible outside the box indicates power. A red LED indicates water detected. The Model WD-1B is also available with an external tape style sensor, the Model WD-2-T.
Kele Description
WATER DETECTOR SPDT W/DEENERGIZED RELAY
Manufacturer
Kele
