LU83-5101 | Flowline | Level

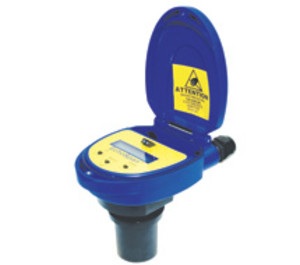

ECHOSPAN LEVEL TRANSMITTER, 26.2 FT, 2" NPT
Brand:Flowline
MPN:LU83-5101
SKU:LU83-5101
List Price:
$2,239.00
Today's Price:
$1,164.28
Log in for customized pricingproduct specifications
Range
30 psi
Type
Level Transmitter
Cable Length
26.2 ft
Sensing Type
Ultrasonic
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 12-28 VDC
Accuracy: ±0.2% of span in air
Signal Output: 4-20 mA, two-wire @ 500 O
Measurement Range:
LU80: 4" to 9.8' (10 cm to 3m)
LU81: 8" to 18.0' (20 cm to 5.5m)
LU83: 8" to 26.2' (20 cm to 8m)
LU84: 12" to 32.8' (30 cm to 10m)
Memory: Non-volatile
Deadband:
LU80: 4" (10 cm)
LU81/83: 8" (20 cm)
LU84: 12" (30 cm)
Operating Pressure: 30 psig (206.9 kPa)
Beam Width:
LU80: 2" (5.0 cm)
LU81/83/84: 3" (7.6 cm)
Fail Safe: Selectable: 4mA, 20 mA, 21 mA, 22 mA, or hold last signal
Temperature:
Compensation: Automatic
Process Connection:
LU80: 1" NPT
LU81/83/84: 2" NPT
Operating Temperature: -7° to 140°F (-22° to 60°C)
Enclosure Rating: NEMA 4X (IP65)
Weight:
LU80: 2.0 lb (0.9 Kg)
LU81/83/84: 3.0 lb (1.4 Kg)
Approvals: CE, RoHS
Warranty: 1 year
product series features
- 9.8ft, 18.0ft, 26.2ft, 32.8ft (3, 5.5, 8, or 10m) ranges available
- Simple push button configuration
- Polycarbonate/ABS enclosure rated NEMA 4X (IP65)
- Fail-safe intelligence
- 3 in (7.6 cm) beam diameter for applications with restricted space (LU81/83/84)
- Six segment LCD display indicates liquid level in inches or centimeters
more information & related documents
Series Description
The general purpose LU80/81/83/84 Series ultrasonic level transmitter provides non-contact liquid level measurement up to 32.8 ft (10m), with an accuracy of ±0.2%. The level transmitter uses a liquid level sensor to measure liquid levels. Setup is fast and easy using the push button menu and LCD display. This can be used as a water level sensor or for other liquids. The LU80/81/83/84 Series features fail-safe intelligence with diagnostic feedback for easy troubleshooting. It is designed to achieve reliable liquid level control in Building Automation Systems, BAS, and HVAC applications. The electronics are housed in a rugged NEMA 4X enclosure“ideal for ultrapure, corrosive, waste, and slurry environments.
Kele Description
ECHOSPAN LEVEL TRANSMITTER, 26.2 FT, 2" NPT
Manufacturer
Flowline
LU80 81 83 84 Data Sheet
