LR81-0110 | Flowline | Level

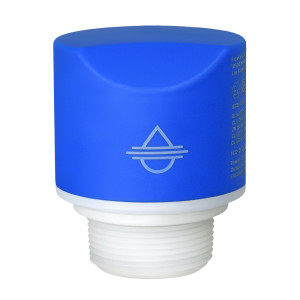

LEVEL SENSOR, HORIZONTAL CABLE, 1-1/2 IN G, 4-20 MA W/HART

Brand:Flowline

MPN:LR81-0110

SKU:LR81-0110

List Price:

$1,959.00

Today's Price:

$1,018.68

Lead time of 14 days. Chat with Kele experts now

product specifications

Enclosure Rating

NEMA 6P

Range

15 min, 30 min

Type

Radar Level Transmitter

Cable Length

32.8 ft

Supply Voltage (Nominal)

24 VDC

product series specifications

Maximum range: Liquid: 98.4' (30m) with media dielectric = 20 and no agitation; Solids: 49.2' (15m) with media dielectric = 6 and no dust

Frequency: 80 GHz., W-band, FMCW

Accuracy: 0.4m to 30m: ± 2mm; 0.00m to 0.39m: ± 10mm

Min. Dielectric: = 1.6

Bluetooth Range: 26.2' (8m)

Signal Output: 4-20 mA, two-wire, HART 7 or Modbus, RS485, 9600 baud or SDI-12

Max. Signal Dist.: 4-20 mA: 1,000' (304m); Modbus: 3,937' (1200m); SDI-12: 2,000' (609m) divided by number of sensors on the network.

Supply Voltage: 4-20 mA: 12-30 VDC; Modbus: 9-27 VDC; SDI-12: 9-30 VDC

Max. Consumption: 4-20 mA: 22.5 mA; Modbus & SDI-12: 1.5 watt

Process Temp.: F: -40° to 176°, C: -40° to 80°.

Temp. Comp.: Automatic

Storage Temp.: F: -40° to 176°, C: -40° to 80°

Pressure: -14.5 to 43.5 psi (-1 to 3 bar)

Enclosure Rating: Type 6P (IP68)

Cable Length: 32.8' (10m)

Conduit Connect.: 1" NPT or 1" G.

product series features

80 GHz technology provides reliable, maintenance-free operation.
Measures level height, air gap, tank volume or open channel flow.
Rugged PVDF antenna and enclosure for corrosive liquid or solids.
|P68 rated sensor for harsh outdoor or below grade installations.
Sealed 10m PVC jacketed cable for corrosive level environments.
Zero dead band maximizes the potential fill capacity of small tanks.
Optionally measures through top wall of plastic or fiberglass tanks.
Configuration via LevelTapTM App, HART communicator or Modbus.
Low 9V or 12V operation is ideal for battery powered systems.

more information & related documents

Series Description

<p>The LR81 general purpose 80 GHz radar sensor providescontinuous level measurement up to 98.4’ (30m) for liquids or 49.2’ (15m) forsolids, with a 4-20 mA with HART, Modbus or SDI-12 signal output. The sensor iswirelessly configured over Bluetooth via our LevelTap™ App which enables you tosee the level, verify the status, and manage the settings of connected sensorsfrom the safety of the ground or nearby catwalk. The sensor measures liquid andsolids media with a dielectric constant value ≥ 1.6, such as water, chemical orpetroleum-based liquids, and pellet, grain, powder, or aggregate solids. Selectthis sensor for tank, sump, lift station, weir, canal, reservoir, silo, bin,conveyor, transfer station or stockpile applications.</p>

Kele Description

LEVEL SENSOR, HORIZONTAL CABLE, 1-1/2 IN G, 4-20 MA W/HART

Manufacturer

Flowline
