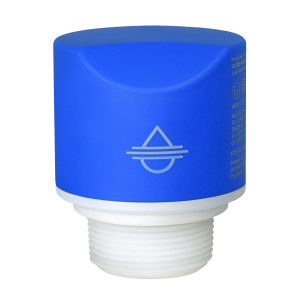

LR81-0100 | Flowline | Level
LEVEL SENSOR, HORIZONTAL CABLE, 1-1/2 IN NPT, 4-20 MA W/HART
Brand:Flowline
MPN:LR81-0100
SKU:LR81-0100
List Price:
$1,949.00
Today's Price:
$1,013.48
Log in for customized pricingproduct specifications
Enclosure Rating
NEMA 6P
Range
15 min, 30 min
Type
Radar Level Transmitter
Cable Length
32.8 ft
Supply Voltage (Nominal)
24 VDC
product series specifications
Maximum range: Liquid: 98.4' (30m) with media dielectric = 20 and no agitation; Solids: 49.2' (15m) with media dielectric = 6 and no dust
Frequency: 80 GHz., W-band, FMCW
Accuracy: 0.4m to 30m: ± 2mm; 0.00m to 0.39m: ± 10mm
Min. Dielectric: = 1.6
Bluetooth Range: 26.2' (8m)
Signal Output: 4-20 mA, two-wire, HART 7 or Modbus, RS485, 9600 baud or SDI-12
Max. Signal Dist.: 4-20 mA: 1,000' (304m); Modbus: 3,937' (1200m); SDI-12: 2,000' (609m) divided by number of sensors on the network.
Supply Voltage: 4-20 mA: 12-30 VDC; Modbus: 9-27 VDC; SDI-12: 9-30 VDC
Max. Consumption: 4-20 mA: 22.5 mA; Modbus & SDI-12: 1.5 watt
Process Temp.: F: -40° to 176°, C: -40° to 80°.
Temp. Comp.: Automatic
Storage Temp.: F: -40° to 176°, C: -40° to 80°
Pressure: -14.5 to 43.5 psi (-1 to 3 bar)
Enclosure Rating: Type 6P (IP68)
Cable Length: 32.8' (10m)
Conduit Connect.: 1" NPT or 1" G.
product series features
- 80 GHz technology provides reliable, maintenance-free operation.
- Measures level height, air gap, tank volume or open channel flow.
- Rugged PVDF antenna and enclosure for corrosive liquid or solids.
- |P68 rated sensor for harsh outdoor or below grade installations.
- Sealed 10m PVC jacketed cable for corrosive level environments.
- Zero dead band maximizes the potential fill capacity of small tanks.
- Optionally measures through top wall of plastic or fiberglass tanks.
- Configuration via LevelTapTM App, HART communicator or Modbus.
- Low 9V or 12V operation is ideal for battery powered systems.
more information & related documents
Series Description
<p>The LR81 general purpose 80 GHz radar sensor providescontinuous level measurement up to 98.4’ (30m) for liquids or 49.2’ (15m) forsolids, with a 4-20 mA with HART, Modbus or SDI-12 signal output. The sensor iswirelessly configured over Bluetooth via our LevelTap™ App which enables you tosee the level, verify the status, and manage the settings of connected sensorsfrom the safety of the ground or nearby catwalk. The sensor measures liquid andsolids media with a dielectric constant value ≥ 1.6, such as water, chemical orpetroleum-based liquids, and pellet, grain, powder, or aggregate solids. Selectthis sensor for tank, sump, lift station, weir, canal, reservoir, silo, bin,conveyor, transfer station or stockpile applications.</p>
Kele Description
LEVEL SENSOR, HORIZONTAL CABLE, 1-1/2 IN NPT, 4-20 MA W/HART
Manufacturer
Flowline
Related Documents
EchoBeam_LR81_QS
