LR80-0000 | Flowline | Level

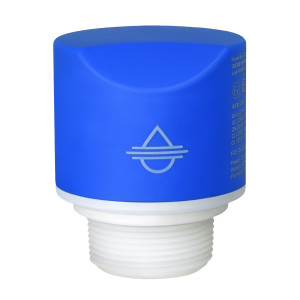

LEVEL SENSOR, 1-1/2 IN NPT, 4-20 MA
Brand:Flowline
MPN:LR80-0000
SKU:LR80-0000
List Price:
$1,590.00
Today's Price:
$826.80
Log in for customized pricingproduct specifications
Range
5 min, 10 min
Type
Radar Level Transmitter
Accessory Type
Vertical Cable
Cable Length
32.8 ft
Supply Voltage (Nominal)
24 VDC
product series specifications
Maximum Range: Liquid: 32.8' (10m) with media dielectric = 20 and no agitation; Solids: 16.4' (5m) with media dielectric = 6 and no dust.
Frequency: 80 GHz., W-band, FMCW
Accuracy: 0.4m to 10m: ± 5mm; 0.00m to 0.39m: ± 10mm
Min. Dielectric: = 1.6
Bluetooth Range: 26.2' (8m)
Signal Output: 4-20 mA, two-wire.
Max. Signal Dist.: 1,000' (304m)
Signal Fail-Safe: Selectable high, low or hold last value.
Supply Voltage: 12-30 VDC
Max. Consumption: 22.5 mA
Process Temp.: F: -40º to 140º; C: -40º to 60º.
Temp. Comp.: Automatic
Storage Temp.: F: -40° to 176°, C: -40° to 80°
Pressure: -14.5 to 43.5 psi (-1 to 3 bar)
Enclosure Rating: Type 6P (IP68)
Cable Length: 32.8' (10m)
Conduit Connect.: 1" NPT or 1" G.
product series features
- 80 GHz technology provides reliable, maintenance-free operation
- Measures level height, air gap, tank volume or open channel flow
- Rugged PVDF antenna and enclosure for corrosive liquid or solids
- IP68 rated sensor for harsh outdoor or below grade installations
- Shielded 10m PVC jacketed cable for corrosive level environments
- Zero dead band maximizes the potential fill capacity of small tanks
- Optionally measures through top wall of plastic or fiberglass tanks
- Bluetooth wireless configuration via the LevelTapTM mobile App
- Lowest cost radar sensor for your basic level requirements
more information & related documents
Series Description
The LR80 general purpose 80 GHz radar level sensor transmitter provides continuous level measurement up to 32.8’ (10m) for liquids or 16.4’ (5m) for solids with a 4-20 mA signal output. The level sensor transmitter is wirelessly configured over Bluetooth via our Level Tap TM App which enables you to see the level, verify the status, and manage the settings of connected level sensor transmitters from the safety of the ground or nearby catwalk. The level sensor transmitter measures liquid and solids media with a dielectric constant value ≥ 1.6, such as water, chemical or petroleum-based liquids, and pellet, grain, powder, or aggregate solids. Select this level sensor transmitter for tank, sump, lift station, weir, canal, reservoir, bin, conveyor, or transfer station applications.
Kele Description
LEVEL SENSOR, 1-1/2 IN NPT, 4-20 MA
Manufacturer
Flowline
Related Documents
EchoBeam_LR80_QS
