LR30-0010-10 | Flowline | Level

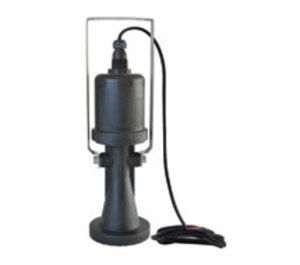

ECHOPULSE 26 GHZ RADAR LEVEL TRANSMITTER WITH DISPLAY
Brand:Flowline
MPN:LR30-0010-10
SKU:LR30-0010-10
List Price:
$3,800.00
Today's Price:
$1,976.00
Log in for customized pricingproduct specifications
Range
65 ft
Type
Radar Level Transmitter
Sensing Type
Radar
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 16 to 26 VDC @ 22.5 mA
Accuracy: ± 5 mm
Signal Output: 4-20 mA @ 461 µA (loop powered)
Frequency: 26 GHz
Fail Safe: 20.5 mA, 22 mA, or 3.9 mA
Deadband: 12 mm (30 cm)
Beam Angle: 12°
Range: 98.42' (30 m)
Integration Time: 0-40 sec, adjustable
Pressure: Ambient
Process Temperature: -40° to 158°F (-40° to 70°C)
Ambient Temperature: -40° to 158°F (-40° to 70°C)
Operating Humidity: <95%
Cable Connect: Standard 2-wire cable with outside diameter of 5-9 mm
Cable Entrance: 1/2" NPT
Antenna: 316 L
Seal: Viton
Seal Ring: Silicone
Bracket: Powder coated bracket
Enclosure: PA66
Approvals: cTUVus, FCC (Part 15.256), CE, GP, CRN registered, RoHS
Weight: 2.2 lbs (1 Kg)
Warranty: 1 year
product series features
- Loop powered 4-20 mA signal
- Continuous, non-contact level measurement for liquids, pulps and slurries
- Submersible design ideal for sump and lift station applications
- Measurement not affected by wave action
- Max measurement range: 98.42 ft (30 m)
- Process temperature up to 158 degrees F (70 degrees C)
more information & related documents
Series Description
The Flowline EchoPulse® LR30 Series 26 GHz radar transmitter provides continuous level measurement up to 98.42 ft (30 m) with a 4-20 mA signal output and is configured via its integral push button display menu. The LR30 Series non-contact liquid level sensor with IP68 environmental enclosure and is ideally suited for water and wastewater application for below grade installation.
Kele Description
ECHOPULSE 26 GHZ RADAR LEVEL TRANSMITTER WITH DISPLAY
Manufacturer
Flowline
