LR20-0310-30 | Flowline | Level

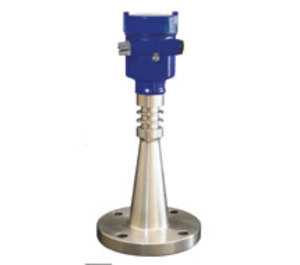

ECHOPULSE 26 GHZ RADAR LEVEL TRANSMITTER, 3" ANSI FLANGE
Brand:Flowline
MPN:LR20-0310-30
SKU:LR20-0310-30
List Price:
$5,896.00
Today's Price:
$3,065.92
Log in for customized pricingproduct specifications
Range
65 ft
Type
Radar Level Transmitter
Sensing Type
Radar
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 16 to 26 VDC @ 22.5 mA
Accuracy: ± 3 mm
Signal Output: 4-20 mA (loop powered)
Frequency: 26 GHz
Fail Safe: 20.5 mA, 22 mA, or 3.9 mA
Deadband: 12° (30 cm)
Beam Angle:
8° - 2° (48 mm) horn
12° - 3° (78 mm) horn
8° - 4° (98 mm) horn
Range: 65.51' (20 m)
Integration Time: 0-40 sec, adjustable
Pressure: -14.5 to 72.5 psi
Operating Humidity: < 95%
Cable Connect: Standard 2-wire cable with outside diameter of 5-9mm
Cable Entrance: One cable entry 1/2" NPT, one binding 1/2" NPT
Antenna: 316 L
Flange: 316 L w/ PTFE cover
Seal: Viton
Seal Ring: Silicone
Window: Polycarbonate
Ground Terminal: Stainless Steal
Enclosure: Aluminum
Approvals: cTUVus, FCC (Part 15.256), CE, GP, CRN Registered, RoHS
Weight: 4.41 lbs (2 Kg)
Warranty: 1 year
product series features
- Loop powered 4-20 mA measurement output
- Continuous, non-contact level measurement for liquids, pulps and slurries
- Measurement not affected by wave action
- Max measurement range: 65.6ft (20 m)
- Process pressure up to 70 psi
- Radar impulses 26 GHz
- Storage and recognition system for false echo signals
more information & related documents
Series Description
The Flowline EchoPulse® LR20 Series 26 GHz radar transmitter provides continuous level measurement up to 65.6 ft (20 m) with a 4-20 mA signal output and is configured via its integral push button display menu. The LR20 Series non-contact liquid level sensor with PTFE coated stainless steel horn is ideally suited for liquid level applications of tall water tanks, sumps, aggressive chemicals, and higher temperature or pressure liquids.
Kele Description
ECHOPULSE 26 GHZ RADAR LEVEL TRANSMITTER, 3" ANSI FLANGE
Manufacturer
Flowline
