LR10-0010 | Flowline | Level

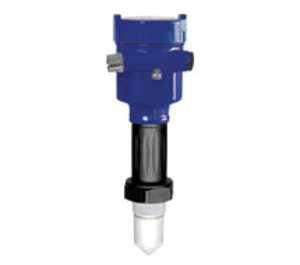

ECHOPULSE 26 GHZ RADAR LEVEL TRANSMITTER, 1 1/2" NPT
Brand:Flowline
MPN:LR10-0010
SKU:LR10-0010
List Price:
$3,570.00
Today's Price:
$1,856.40
Log in for customized pricingproduct specifications
Range
32 ft
Type
Radar Level Transmitter
Sensing Type
Radar
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 16 to 26 VDC @ 22.5 mA
Accuracy: ± 5 mm
Signal Output: 4-20 mA @ 4-20 mA (loop powered)
Frequency: 26 GHz
Fail Safe: 20.5 mA, 22 mA, or 3.9 mA
Deadband: 12 in (30 cm)
Beam Angle: 22°
Range: 32.81' (10 m)
Integration Time: 0-40 sec, adjustable
Pressure: -14.5 to 43.5 psi
Process Temperature: -40° to 266°F (-40° to 130°C)
Operating Temperature: -40° to 212°F (-40° to 100°C)
Operating Humidity: < 95%, non-condensing
Cable Connect: Standard 2-wire cable with outside diameter of 5-9mm
Cable Entrance: One cable entry 1/2" NPT, one binding 1/2" NPT
Antenna: PTFE
Seal: Viton
Seal Ring: Silicone
Window: Polycarbonate
Ground Terminal: Stainless Steal
Enclosure Rating: Aluminum, NEMA 4, IP67
Approvals: cTUVus, FCC (Part 15.256), CE, GP, CRN Registered, RoHS
Weight: 2.2 lbs (1 Kg)
Warranty: 1 year
product series features
- Loop powered 4-20 mA signal
- Continuous, non-contact level measurement for liquids
- Measurement not affected by wave action
- Max measurement range: 32.8ft (10 m)
- Process temperature up to 266 degrees F (130 degrees C)
- Process pressure up to 43.5 psi
- Radar impulses 26 GHz
- Storage and recognition system for false echo signals
more information & related documents
Series Description
The Flowline EchoPulse® LR10 Series 26 GHz radar transmitter provides continuous level measurement up to 32.8 ft (10 m) with a 4-20 mA signal output and is configured via its integral push button display menu. The LR10 Series non-contact liquid level sensor with PTFE covered antenna is ideally suited for higher temperature or pressure level applications with aggressive chemicals.
Kele Description
ECHOPULSE 26 GHZ RADAR LEVEL TRANSMITTER, 1 1/2" NPT
