LM52-1400 | Flowline | Level
2" NPT X 1" NPT (SCH. 40)
Brand:Flowline
MPN:LM52-1400
SKU:LM52-1400
List Price:
$41.21
Today's Price:
$21.43
Log in for customized pricingproduct specifications
Type
Accessory
product series specifications
Supply Voltage: 10 to 33 VDC
Accuracy: ± 0.25% of full scale
Signal Output: 4-20 mA, two-wire
Measurement Range:
LD34: up to 100 ft (30.5m)
LD35: up to 30 ft (9.1m)
Proof Pressure: 2 x full scale
Process Temperature: -4° to 176°F (-20° to 80°C)
Cable Length:
S101 & S111: 40 ft (12.2m) (LD34)
S121 & S131: 60 ft (18.3m) (LD34)
S141: 70 ft (21.3m) (LD34)
S151: 100 ft (30.5m) (LD34)
SX01 & SX11: 40 ft (12.2m) (LD35)
SX21 & SX31: 60 ft (18.3m) (LD35)
Cable Type: Polyurethane cable jacket, ETFE cable jacket (LD35 only)
Weight:
LD34: 0.24 lb (0.11 Kg)
LD35: 0.30 lb (0.14 Kg)
Approvals: CE, RoHS
Warranty: 1 year
product series features
- Welded 316 SS body and 316 SS nose cap (LD34)
- Tapered body top prevents damage or snaring when removing from installation
- Incorporates lighting and surge protection
- Provides precise output readings with its ±0.25% accuracy
- Robust PTFE coated FKM fluroelsatomer diaphragm provides a non-stick surface for aggressive fluids (LD35)
more information & related documents
Series Description

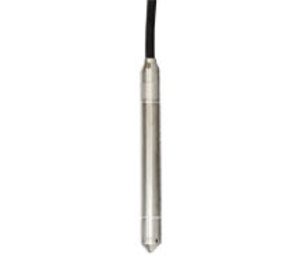

The Flowline DeltaSpan LD34 and LD35 Series small-bore submersible pressure liquid level transmitters provide continuous level measurement up to 100 ft (30.4m) of water column with a loop powered 4-20 mA signal output. Select the LD34 Series liquid level sensor for monitoring of relatively clean water. Application examples include ballast tanks, ground water, surface water, cooling tower sumps, holding ponds and water tanks. Select the LD35 Series liquid level sensor for dirty, foaming or slurry type liquids. Application examples include sewage lift stations industrial slurries, industrial sumps, landfill leachate, reservoirs, sludge pits and oil tankers.
Kele Description
2" NPT X 1" NPT (SCH. 40)
Manufacturer
Flowline
Related Documents
LD34 Datasheet
