LG10-1003-01 | Flowline | Level

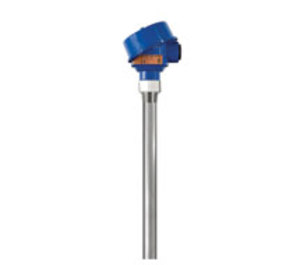

GUIDED WAVE RADAR LVL TRANS SSCOAX ROD 3/4NPT WFOB
Brand:Flowline
MPN:LG10-1003-01
SKU:LG10-1003-01
List Price:
$3,309.00
Today's Price:
$1,720.68
Log in for customized pricingproduct specifications
Range
14.5 - 250 psi
Type
Level Radar Transmitter
Cable Length
18 ft
Sensing Type
Radar
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 10-30 VDC @ 50 mA
Accuracy: ± 3mm
Repeatability: <2mm
Resolution: <2mm
Signal Output: 4-20 mA @ 461 O (3 wire)
Configuration: WebCal PC Software
Fail Safe: 20.5 mA, 22 mA, or 3.9 mA
Deadband: Top 4° (10cm)
Deadband: Bottom 2° (5cm)
Range: Rod / Coaxial: 9.8' (3.0m)
Range: Cable: 18.0' (5.5m)
Conduit Entrance: (1) 1.2" NPT connector
Pressure: -14.5 to 250 psig (-1 to 17 bar)
Process Temperature: -40° to 302°F (-40° to 150°C)
Operating Temperature: -40° to 185°F (-40 to 85°C)
Operating Humidity: < 95%, non-condensing
Feed Through Material: 316L SS and PEEK
Enclosure Rating: Aluminum, NEMA 4, IP67
Probe Material: Rod / Coaxial: 316L SS
Probe Material: Cable: 316 SS
Process Mount: 3/4" NPT or 3/4" G
Classification: General purpose
Approvals: CSA / NRTL, CE, CRN, RoHS
Weight: model specific
Warranty: 2 year
product series features
- Rugged 316L stainless steel probe and process mount
- Simple configuration via WebCal™ software
- Guided Wave Radar is unaffected by vapor, vacuum, foam, condensation, high temperature or pressure
- 4 in (10cm) dead band enables utilization of the entire tank
- Fail-safe diagnostics with selectable signal outputs
- Disturbance scanning that maps the recognition, storage and rejection of false echo signal returns
- Rugged NEMA 4 aluminum enclosure
more information & related documents
Series Description
The Flowline EchoWave® LG10/11 general purpose radar level transmitter, offered with three different probe types, provides continuous level measurement up to 18 ft (5.5m) with a 4-20 mA signal output and is configured via our free WebCal software. This liquid level sensor is applied in non-turbulent environments with foam, vapor, condensation, temperature or pressure.
