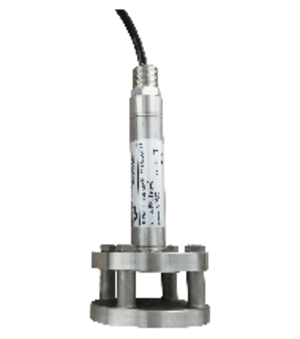

PBLT2-15-150 | Dwyer Instruments | Level
SUBMERSIBLE LEVEL TRANSMITTER, RANGE 15 PSI (3463FT WC) 1056 M WC, 150FT (457 M) ETFE CABLE
Brand:Dwyer Instruments
MPN:PBLT2-15-150
SKU:PBLT2-15-150
List Price:
$4,690.00
Today's Price:
$2,438.80
Log in for customized pricingproduct specifications
Range
15 psi
Type
Submersible Level Transmitter
Cable Length
150 ft
Sensing Type
Pressure
Supply Voltage (Nominal)
24 VDC
product series specifications
Service: Compatible liquids
Wetted Materials: 316 SS, 316L SS, epoxy, cable: ETFE or polyurethane
Accuracy: ±0.25% FS (includes linearity, hysteresis, and repeatability)
Temperature Limit: 0 to 200°F (-18 to 93°C)
Compensated Temperature Range: 0 to 180°F (-18 to 82°C)
Thermal Effect: ±0.02% FS/°F
Pressure Limit: 2X FS
Power Requirement: 13 to 30 VDC
Output Signal: 4 to 20 mA DC, two-wire
Response Time: 50 ms
Loop Resistance: 900 O
Electrical Connection: Wire pigtail
Weight: 4.3 lb (2.0 kg)
Approvals: CE
product series features
- Durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
- Incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on
- PBLT2 models
- Maintenance-free filter eliminates particulate or water droplets from entering the transducer
- UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
- 270 lb tensile strength shielded and vented cable
- Excellent chemical compatibility
- NPT connection allows the unit to be rigidly installed in a pipe/conduit, or the addition of an A-625 hanging loop for attaching a chain for pulling out of the installation
- Standard 72 hour lead time ensures minimal downtime
more information & related documents
Series Description
The Dwyer PBLT2 Series submersible level transmitter manufactured for years of trouble-free service in the harshest applications. It measures the height of the liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element encased in a 316 SS housing with cage and large diameter 316 SS diaphragm seal.
Kele Description
SUBMERSIBLE LEVEL TRANSMITTER, RANGE 15 PSI (3463FT WC) 1056 M WC, 150FT (457 M) ETFE CABLE
Manufacturer
Dwyer Instruments
PBLT2 and PBLTX Data Sheet
