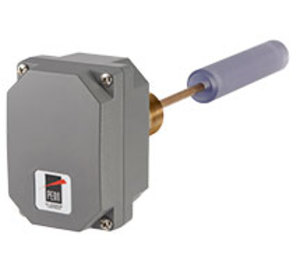

F263MAP-V01C | Johnson Controls | Level
LIQUID LEVEL SWITCH, SPDT, NEMA 3R
Brand:Johnson Controls
MPN:F263MAP-V01C
SKU:F263MAP-V01C
List Price:
$756.00
Today's Price:
$393.12
Log in for customized pricingproduct specifications
Range
150 psig
Type
Float Level Switch
Sensing Type
Pressure
product series specifications
Switch: Single-pole, double-throw (SPDT)
Enclosure: UL: Type 4 (NEMA)
CE: IP67
Wiring Connections: Three color-coded screw terminals and one ground terminal
Conduit Connection: One 7/8" (22 mm) hole for 1/2" trade size (or PG16) conduit
Pipe Connector: 1" 11-1/2" NPT threads
Minimum Tank Diameter: 9" (229 mm)
Maximum Liquid Pressure: 100 psig (690 kPa) for copper float
Maximum Liquid Pressure: 150 psig (1,035 kPa) for polycarbonate float
Liquid Temperature Range: Minimum: 20°F (-29°C) or liquid freezing point
Liquid Temperature Range: Maximum: 212°F (100°C) polycarbonate, 250°F (121°C)
Ambient Conditions: Minimum: -40°F (-40°C)
Ambient Conditions: Maximum: 140°F (60°C)
Approvals: cULus Listed: UL 60730, File E6688, FCC Compliant to CRFR47, Part 15, Subpart B, Class B
Approvals: Industry Canada (IC) Compliant to Canadian ICES-003, Class B limits
Warranty: 1 year
product series features
- Viton® diaphragm
- Single-pole, double-throw switch
- Sturdy Type 4 (NEMA) enclosure
- Solid polycarbonate float (F263MAP models)
more information & related documents
Series Description
The Johnson Control F263 Series liquid level float switches are designed to maintain a liquid level in indoor or outdoor closed tanks that hold water or other nonhazardous liquids. When the liquid level in the tank rises above or falls below the required level, the single-pole, double-throw (SPDT) switch closes one circuit and opens a second circuit.
Kele Description
LIQUID LEVEL SWITCH, SPDT, NEMA 3R
Manufacturer
Johnson Controls
