L195-0208-0803 | Innovative Solutions/SWI Solutions With Innovation | Level

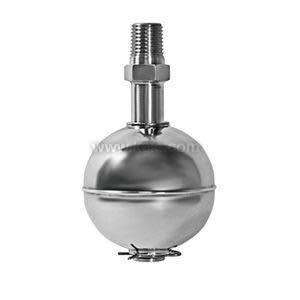

StainleSS Steel Float Level Switch
Brand:Innovative Solutions/SWI Solutions With Innovation
MPN:L195-0208-0803
SKU:F8-SSL
List Price:
$561.00
Today's Price:
$291.72
Log in for customized pricingproduct specifications
Type
Float Level Switch
Sensing Type
Pressure
product series specifications
Relay Type: SPST
Relay Rating: 50 VA, NO/NC
Specific Gravity: 0.75
Wetted Materials: 316 Stainless Steel (stem/float)
Mounting Orientation: Vertical
Actuation: 1 3/16" (3 cm)
Process Connection: 1/4" MNPT
Wiring Terminations: 2 Red lead wires
Operating Temperature: -40° to 300°F (-40° to 149°C)
Dimensions: 2.06" L x 1.0" dia. (5.2 x 2.5 cm)
Weight: 0.2 lb (0.09 Kg)
Approvals: UL File #E203716
Warranty: 1 year
product series features
- High pressure and high temperature performance
- 50 VA SPST switching
- Hermetically sealed
- Easy installation
- Vertical mounting
- Normally open or closed operation
more information & related documents
Series Description
The Solutions with Innovation Model F8-SSL stainless steel float level switches are designed for high pressure or high temperature level monitoring applications. Magnets within the float actuate the hermetically sealed reed switch on rising or falling levels. The unit is mounted vertically and shipped in the normally open position. For normally closed operation, simply invert the float.
Kele Description
STAINLESS STEEL FLOAT LEVEL SWITCH
Manufacturer
Innovative Solutions/SWI Solutions With Innovation
F8-SSL Datasheet
