LZ12-1405 | Flowline | Level

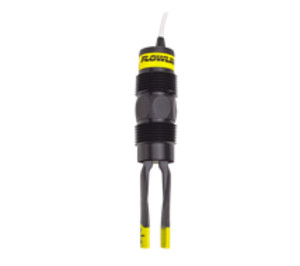

VIBRATION POINT LEVEL SWITCH, RYTON, 4.5IN LENGTH, 3/4IN NPT, 10FT CABLE
Brand:Flowline
MPN:LZ12-1405
SKU:LZ12-1405
List Price:
$787.00
Today's Price:
$409.24
Log in for customized pricingproduct specifications
Range
150 psi
Type
Vibration Level Switch
Cable Length
10 ft
Sensing Type
Mechanical
Supply Voltage (Nominal)
24 VDC
product series specifications
Orientation: Universal
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Supply voltage: 12-30 VDC
Consumption: 25 mA maximum
Contact type: (1) SPST relay
Contact rating: 60 VA, 1A maximum
Contact output: Selectable NO / NC
Maint. alarm: NPN transistor, 10 mA maximum
Process temperature: F: -40° to 176°, C: -40° to 80°
Pressure: 150 psi (10 bar) @ 25°C, derated @ 1.667 psi (0.113 bar) per °C above 25°C
Sensor rating: NEMA 6 (IP68)
Sensor material: Ryton® (glass filled)
Grommet material: Viton®
Cable jack. material: Polypropylene
Cable type: 5-conductor, shielded, #24 AWG
Cable length: 10' (3m)
Process mount: 3/4" NPT (3/4" G)
Mount. gasket: Viton®
Compliance: CE
Warranty: 2 Years
product series features
- Automatic coating adjustment optimizes sensor performance
- Submersible Ryton® sensor with polypropylene cable for corrosive liquids
- Maintenance alarm proactively alerts user if sensor cleaning is required
- 60VA SPST relay selectable NO or NC via power supply wiring polarity
- Compatible with Smart Trak and Switch-Pak installation fittings
more information & related documents
Series Description
The general purpose vibration level switch provides high or low liquid level detection of dirty liquids or those with light to medium coating or scaling characteristics with a 1A relay output. Media examples include wastewater, diluted caustic soda and copper sulfate. For optimum performance, the sensor automatically adjusts for coating build up, and if necessary, outputs a proactive maintenance alarm to request cleaning. The submersible PP-Ryton® level switch sensor is universally mounted through the tank wall or inside the tank, and connected to a PLC or relay controller.
Kele Description
VIBRATION POINT LEVEL SWITCH, RYTON, 4.5IN LENGTH, 3/4IN NPT, 10FT CABLE
Manufacturer
Flowline
Related Documents
LZ12 Datasheet
