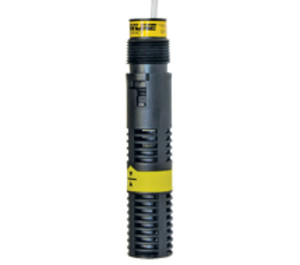

LV10-1301 | Flowline | Level
VERTICAL BUOYANCY POINT LEVEL SWITCH, PP, 5.4IN LENGTH, 3/4IN NPT, 10FT CABLE
Brand:Flowline
MPN:LV10-1301
SKU:LV10-1301
List Price:
$368.00
Today's Price:
$191.36
Log in for customized pricingproduct specifications
Range
25 psi
Type
Buoyancy Level Switch
Cable Length
10 ft
Sensing Type
Buoyancy
product series specifications
Orientation: ± 20° vertical
Accuracy: ± 2mm in water
Repeatability: ± 1mm in water
Specific gravity: 0.8 minimum
Contact type: (1) SPDT reed
Contact rating: 15 VA, 0.25A maximum
Contact output: Selectable NO / NC
Process temperature: F: -40° to 176°, C: -40° to 80°
Pressure: 25 psi (2 bar) @ 25° C, derated @ 1.667 psi (0.113 bar) per °C above 25° C
Sensor rating: NEMA 6 (IP68)
Sensor material: -13X1: PP, -53X1: PVDF
Cable jack material: -13X1: PP, -53X1: FEP
Cable type: 3-conductor, shielded
Cable length: 10' (3m)
Process mount: 3/4" NPT (3/4" Rp)
Compliance: CE
Warranty: 2 Years
product series features
- Baffle body and stabilized float dampen out switch chatter
- Submersible PP or PVDF sensor and cable for corrosive liquids
- 15VA dry contact selectable NO or NC state via wiring selection
- Compatible with Smart Trak and Switch-Pak installation fittings
more information & related documents
Series Description
The general purpose buoyancy level switch provides high or low liquid level detection of relatively clean water and chemical solutions with a 15VA reed switch output. Media examples include potable water and boric acid. The baffle body eliminates level switch chatter caused by turbulence. The submersible PP or PVDF level switch sensor is mounted vertically inside the tank, and connected to a PLC or relay controller.
Kele Description
VERTICAL BUOYANCY POINT LEVEL SWITCH, PP, 5.4IN LENGTH, 3/4IN NPT, 10FT CABLE
Manufacturer
Flowline
Related Documents
LV10 Datasheet
