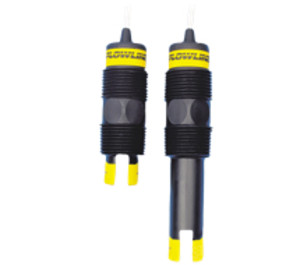

* product series image displayed

LU10-2305 | Flowline | Level

ULTRASONIC POINT LEVEL SWITCH, PFA, 3IN LENGTH, 3/4IN NPT, 10FT CABLE

Brand:Flowline

MPN:LU10-2305

SKU:LU10-2305

List Price:

$1,044.00

Today's Price:

$542.88

Lead time of 7 days. Chat with Kele experts now

product specifications

Range

150 psi

Type

Ultrasonic Level Switch

Cable Length

10 ft

Sensing Type

Ultrasonic

Supply Voltage (Nominal)

24 VDC

product series specifications

Orientation: Universal

Accuracy: ± 1mm in water

Repeatability: ± 0.5mm in water

Supply voltage: 12-36 VDC

Consumption: 25 mA maximum

Contact type: (1) SPST relay

Contact rating: GP: 60 VA, IS: 32 VDC @ 0.5A

Contact output: Selectable NO / NC

Process temperature: F: -40° to 176°, C: -40° to 80°

Pressure: 150 psi (10 bar) @ 25°C, derated @ 1.667 psi (0.113 bar) per °C above 25°C

Sensor rating: -1XX5: NEMA 6 (IP68), -2XX5: NEMA 4X (IP65)

Sensor material: -1XX5: PP, -2XX5: PFA

Cable jack material: -1XX5: PP, -2XX5: PFA

Cable type: 4-conductor, shielded, #22 AWG

Cable length: 10' (3m)

Process mount: 3/4" NPT (3/4" G / Rp)

Mount. gasket: Viton®

Classification: Intrinsically safe

Certificate: CSA, LR 79326

Compliance: CE

Approvals: Class I, Groups A, B, C & D; Class II, Groups E, F & G; Class III

Warranty: 2 years

product series features

CSA approved intrinsically safe for use in hazardous environments
Submersible polypropylene or PFA Teflon® sensor and cable for corrosive liquids
60VA SPST relay selectable NO or NC via power supply wiring polarity
Compatible with Smart Trak and Switch-Pak installation fittings

more information & related documents

Series Description

CSA approved for use in hazardous locations, the intrinsically safe ultrasonic level switch provides high or low liquid level detection of chemical, solvent or low viscosity petroleum based liquids with a 1A relay output. Media examples include hydrochloric acid, acetone and diesel fuel oil. The submersible PP or PFA level switch sensor is universally mounted through the tank wall or inside the tank, and connected to a PLC or relay controller.

Kele Description

ULTRASONIC POINT LEVEL SWITCH, PFA, 3IN LENGTH, 3/4IN NPT, 10FT CABLE

Manufacturer

Flowline
