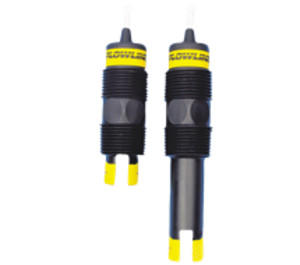

LU10-1405 | Flowline | Level
ULTRASONIC POINT LEVEL SWITCH, PP, 4.5IN LENGTH, 3/4IN NPT, 10FT CABLE
Brand:Flowline
MPN:LU10-1405
SKU:LU10-1405
List Price:
$760.00
Today's Price:
$395.20
Log in for customized pricingproduct specifications
Range
150 psi
Type
Ultrasonic Level Switch
Cable Length
10 ft
Sensing Type
Ultrasonic
Supply Voltage (Nominal)
24 VDC
product series specifications
Orientation: Universal
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Supply voltage: 12-36 VDC
Consumption: 25 mA maximum
Contact type: (1) SPST relay
Contact rating: GP: 60 VA, IS: 32 VDC @ 0.5A
Contact output: Selectable NO / NC
Process temperature: F: -40° to 176°, C: -40° to 80°
Pressure: 150 psi (10 bar) @ 25°C, derated @ 1.667 psi (0.113 bar) per °C above 25°C
Sensor rating: -1XX5: NEMA 6 (IP68), -2XX5: NEMA 4X (IP65)
Sensor material: -1XX5: PP, -2XX5: PFA
Cable jack material: -1XX5: PP, -2XX5: PFA
Cable type: 4-conductor, shielded, #22 AWG
Cable length: 10' (3m)
Process mount: 3/4" NPT (3/4" G / Rp)
Mount. gasket: Viton®
Classification: Intrinsically safe
Certificate: CSA, LR 79326
Compliance: CE
Approvals: Class I, Groups A, B, C & D; Class II, Groups E, F & G; Class III
Warranty: 2 years
product series features
- CSA approved intrinsically safe for use in hazardous environments
- Submersible polypropylene or PFA Teflon® sensor and cable for corrosive liquids
- 60VA SPST relay selectable NO or NC via power supply wiring polarity
- Compatible with Smart Trak and Switch-Pak installation fittings
more information & related documents
Series Description
CSA approved for use in hazardous locations, the intrinsically safe ultrasonic level switch provides high or low liquid level detection of chemical, solvent or low viscosity petroleum based liquids with a 1A relay output. Media examples include hydrochloric acid, acetone and diesel fuel oil. The submersible PP or PFA level switch sensor is universally mounted through the tank wall or inside the tank, and connected to a PLC or relay controller.
Kele Description
ULTRASONIC POINT LEVEL SWITCH, PP, 4.5IN LENGTH, 3/4IN NPT, 10FT CABLE
Manufacturer
Flowline
Related Documents
LU10 Datasheet
