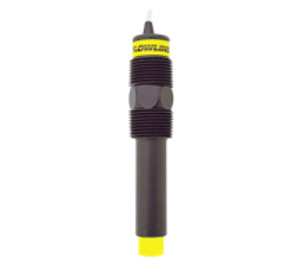

LP15-1405 | Flowline | Level
CAPACITANCE POINT LEVEL SWITCH, PP, 4.5IN LENGTH, 3/4IN NPT, 10FT CABLE
Brand:Flowline
MPN:LP15-1405
SKU:LP15-1405
List Price:
$684.00
Today's Price:
$355.68
Log in for customized pricingproduct specifications
Enclosure Rating
NEMA 6
Range
150 psi
Type
Capacitance Level Switch
Cable Length
10 ft
Sensing Type
Mechanical
Supply Voltage (Nominal)
24 VDC
product series specifications
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Dielectric range: > 20 constants
Conductive range: > 100 µS/cm
Supply voltage: 12-36 VDC
Consumption: 25 mA maximum
Contact type: (1) SPST relay
Contact rating: 60 VA, 1A maximum
Contact output: Selectable NO / NC
Process temperature: F: -40° to 176°, C: -40° to 80°
Pressure: 150 psi (10 bar) @ 25°C., derated @ 1.667 psi (0.113 bar) per °C. above 25°C.
Sensor rating: NEMA 6 (IP68)
Sensor material: Polypropylene
Cable jack material: Polypropylene
Cable type: 4-conductor, shielded #22 AWG
Cable length: 10 ft (3m)
Process mount: 3/4" NPT (3/4" G)
Mount. gasket: Viton® (G version only)
Compliance: CE
Warranty: 2 years
product series features
- Guard circuit optimizes performance in coating
- Submersible PP sensor body and cable for corrosive liquids
- 60VA SPST relay selectable NO or NC via power supply wiring polarity
- Compatible with Switch-Pak fitting for vertical tank installation
more information & related documents
Series Description
The general purpose guard capacitance point level switch provides high or low liquid level detection of water based conductive liquids with light coating, crystallizing or scaling characteristics with a 1A relay output. Media examples include copper sulfate and brine. For best performance, install the sensor vertically and the RF guard eliminates the coating signal path between the active and reference electrodes. The submersible PP liquid level sensor can be mounted inside the tank or through non-metallic tank walls as a high level alarm or low level alarm.
Kele Description
CAPACITANCE POINT LEVEL SWITCH, PP, 4.5IN LENGTH, 3/4IN NPT, 10FT CABLE
Manufacturer
Flowline
Related Documents
LP15 Datasheet
