AV36-4343 | Flowline | Level

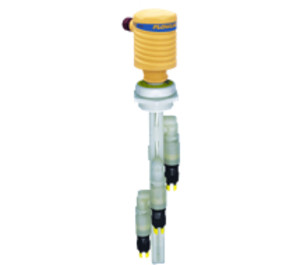

3-POINT BUOYANCY LEVEL SWITCH, PP, 2IN NPT, 3 SPDT REEDS
Brand:Flowline
MPN:AV36-4343
SKU:AV36-4343
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Type
Buoyancy Level Switch
Sensing Type
Buoyancy
Supply Voltage (Nominal)
120 VAC, 120 VDC
product series specifications
Length: 8" to 10' (20cm to 3m)
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Orientation: ± 20° vertical
Switch points: 1-4 (field adjustable)
Supply voltage: AVX6: N/A, AUX8: 12-36 VDC, AZX8: 12-30 VDC
Consumption: AVX6: N/A, AUX8 / AZX8: 25 mA per point maximum
Contact type: AVX6: SPDT reed(s), AUX8 / AZX8: SPST relay(s)
Contact rating: AVX6: 120VAC/VDC @ 15 VA, AUX8 / AZX8: 120 VAC/VDC @ 1A
Contact output: Selectable NO / NC
Process temperature: F: -40° to 176°, C: -40° to 80°
Ambient temperature: F: -40° to 140°, C: -40° to 60°
Installed height: 5.7" (14.4cm) above tank process mount
Pressure: Atmospheric
Enclosure rating: NEMA 4X (IP65)
Enclosure material: PP, UL94VO
Terminal strip: 12-pole, socket
Conduit entrance: 1/2" NPT
Wetted material: PP (20% glass fill)
Process mount: 2" NPT (2" G)
Warranty: 2 years
Classification: AVX6 / AZX8: general purpose, AUX8: intrinsically safe
Compliance: CE
product series features
- Rugged polypropylene construction for use with corrosive liquids
- Available in intrinsically safe and general purpose classifications
- 60VA relay or 15VA dry contact switches selectable NO or NC via wiring
- Offered in three sensor technologies for broad application coverage
- Adjustable level switch cars enable position adjustments in the field
- PP junction box rated NEMA 4X with swivel base and terminal strip
more information & related documents
Series Description
The intrinsically safe or general purpose level switch package provides liquid level detection up to 10 ft (3m) with 1-4 adjustable level switch points and a compact junction box for wiring termination. Offered in three sensor technologies, choose the type based upon your application media. This PP level switch package is selected for day tank, skid or machine, cooling tower, waste sump or process tank applications, connected to a PLC or relay controller.
Kele Description
3-POINT BUOYANCY LEVEL SWITCH, PP, 2IN NPT, 3 SPDT REEDS
Manufacturer
Flowline
Related Documents
AXXX User Datasheet
