AU13-4213 | Flowline | Level

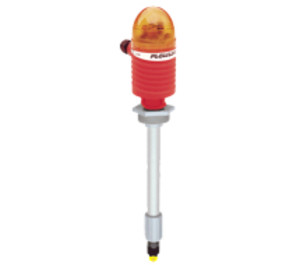

HIGH OR LOW ULTRASONIC LEVEL SWITCH W/ CONTROLLER, PP, 2IN NPT, 16A RELAY W/ STROBE
Brand:Flowline
MPN:AU13-4213
SKU:AU13-4213
List Price:
$2,386.00
Today's Price:
$1,240.72
Log in for customized pricingproduct specifications
Type
Ultrasonic Level Switch
Sensing Type
Ultrasonic
Supply Voltage (Nominal)
240 VAC
product series specifications
Length: 6" to 10' (15cm to 3m)
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Orientation: ± 20° vertical
Switch points: 1 (factory set)
Supply voltage: 120 / 240 VAC @ 50-60 Hz.
LED indication: Sensor, power & relay
Consumption: 0.25A maximum
Strobe type: -X22X: N/A, -X21X: xenon tube
Strobe flash: -X22X: N/A, -X21X: 1 per second
Contact type: (1) SPDT relay
Contact rating: 250 VAC @ 16A
Contact output: Selectable NO / NC
Contact delay: 0.15 - 60 seconds
Process temp.: F: -40° to 176°, C: -40° to 80°
Ambient temperature: F: -40° to 140°, C: -40° to 60°
Installed height: _21_: 6.5" (16.5cm), _22_: 4.9" (12.4cm)
Pressure: AV13: 25 psi (1.7 bar), AU13 / AZ13: 150 psi (10 bar)
Enclosure rating: NEMA 4X (IP65)
Enclosure material: -X21X: PP, UL94VO & PC, -X22X: PP, UL94VO
Conduit entrance: 1/2" NPT
Approvals: CE Compliance EN 50082-2 immunity, EN 55011 emission, EN 61010-1 safety
Warranty: 2 Years
product series features
- Rugged polypropylene or PVDF construction for use with corrosive liquids
- Available in intrinsically safe and general purpose classifications
- 60VA relay or 15VA dry contact switches selectable NO or NC via wiring
- Offered in three sensing technologies for broad application coverage
- Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment
more information & related documents
Series Description
The general purpose level switch package provides high or low liquid level detection with one 16A compact relay controller for pump or valve shut off. The optional flash alarm brings attention to alarm conditions. Available in three level sensor technologies, choose the sensor type based upon your application media. This PP or PVDF level switch package is selected for bulk storage, IBC or drum, and neutralization tank applications, requiring detection and control.
Kele Description
HIGH OR LOW ULTRASONIC LEVEL SWITCH W/ CONTROLLER, PP, 2IN NPT, 16A RELAY W/ STROBE
Manufacturer
Flowline
Related Documents
AX13 Datasheet
