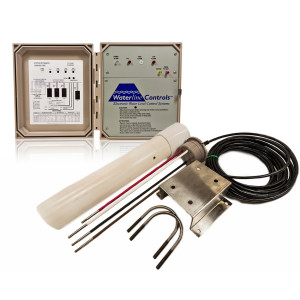

WLC-4500 | System Dynamics/Waterline Controls | Level
WATER LVL CNTRL, FILL W/ LOW ALARM
Brand:System Dynamics/Waterline Controls
MPN:WLC-4500
SKU:WLC-4500
List Price:
$3,564.00
Today's Price:
$1,853.28
Log in for customized pricingproduct specifications
Type
Water Level Control System
Cable Length
50 ft
Sensing Type
Mechanical
Supply Voltage (Nominal)
120 VAC
product series specifications
Supply Voltage: 110 VAC 60 Hz, 250 mA @ 110 VAC
Accuracy: ±0.125" (3.175 mm) of operating range
Relay Type: SPST
Relay Rating:
Internal: 30A @ 250 VAC
Dry Contacts: 0.5 @ 50 VAC/VDC
LED Indication: Power on, Status indication
Sensor Wire Length: 50'
Mounting Orientation: Vertical
Enclosure Rating: NEMA 4X
Dimensions: 8.75" x 10.5" x 6.0" (22.2 x 26.7 x 15.2 cm) including the hinge and latch
Weight: 12 lb (5.4 Kg)
Approvals: ETL listed
Warranty: Limited lifetime warranty
product series features
- Easy installation, simple and reliable
- Compensates for wave action
- No moving parts or mechanical floats
- Liquid tight enclosure
- Accurately manages levels to within 1/8 in of operating range
more information & related documents
Series Description
The Waterline Controls WLC Series electronic water level control system uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation.
Kele Description
WATER LVL CNTRL, FILL W/ LOW ALARM
Manufacturer
System Dynamics/Waterline Controls
Waterline Controls Install Manual 2000-6000
