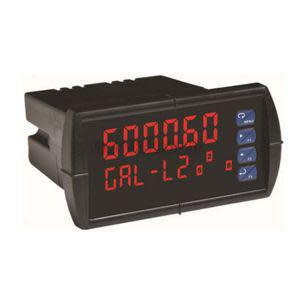

LI55-1011 | Flowline | Level

DataView Level Controller, 85-265 VAC, meter only, 4-20 mA repeater

Brand:Flowline

MPN:LI55-1011

SKU:LI55-1011

List Price:

$1,659.00

Today's Price:

$862.68

Lead time of 3 days. Chat with Kele experts now

product datasheet

installation instructions

product specifications

Type

Level Controller Display

Supply Voltage (Nominal)

265 VAC

product series specifications

Supply Voltage: 85-265 VAC @ 50-60 Hz

Memory: Non-volatile

Contact Rating: 3A @ 30 VDC or 250 VAC resistive load

Contactor Type:

-12_1: 2 SPDT relays

-14_1: 4 SPDT relays

LED Indication: Relay status

Display Output: -99999 to 999999

Display Height: Main: 0.6" (1.5 cm) high; Secondary: 0.46" (1.2 cm) high

Linearization: 2-32 point function

Consumption: 20 watts maximum

Sensor Supply: 24 VDC ±5% @ 200 mA

Repeater Output: 4-20 mA, 24 VDC ±5% @ 40 mA

Ambient Temperature: -40° to 149°F (-40° to 65°C)

Configuration: Push button

Enclosure: 1/8 DIN, panel mount; Polycarbonate

Enclosure Rating: NEMA 4X (IP65) faceplate

Decimal Point: Floating

Display Type: LED, 6-digit

Display Units: Engineering

Sensor Input: 4-20 mA or 0-10 VDC transmitter

Approvals: CE, cULus file # E193723

Weight: 0.6 lb (0.3 kg)

Warranty: 1 year

product series features

LED main display and secondary unit display with relay status
Easy configuration via the push button display module
DIN enclosure with NEMA 4X faceplate and shallow case
Isolated power supply to sensor with 4-20 mA repeater output
Non-volatile memory with security password protection
32-point linearization function for volumetric measurement

more information & related documents

Series Description

The LI55 Series level controller displays engineering units with one 4-20 mA or 0-10 VDC continuous level sensor input and is offered in three configurations with optional 2 or 4 programmable relays, and an isolated 4-20 mA repeater. Each relay can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty in simplex (one pump or valve) or duplex (two pumps) level control modes.

Kele Description

DATAVIEW LEVEL CONTROLLER WITH REPEATER OUTPUT

Manufacturer

Flowline
