FG-OD7 | TTK USA | Leak

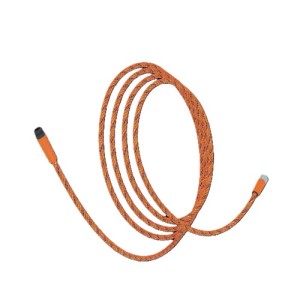

ADDRESSABLE DIGITAL HYRDOCARBON SENSE CABLE 22FT
Brand:TTK USA
MPN:FG-OD7
SKU:FG-OD7
List Price:
$2,533.33
Today's Price:
$1,317.33
Log in for customized pricingproduct specifications
Application
Fluid Leak Detection
Display
No
Operating Voltage
100-240 VAC, 50-60 HZ
Operating Temperature Range
-22F to 212F
product series specifications
Max Pressure: 3 Bar
Minimum and Maximum Working Temperature: -22F to 212F, -30C to 100C
Reusable: Yes
Direct Burial: Possible
Maximum Tensile Strength: 88lb, 40kg
Expected Life Span: >10 Years
Cable Lengths: OD: 22FT, 39FT, and 65FT – ODC: 9FT, 22FT, and 39FT
product series features
- Microcontroller embedded with each sense cable allowing independent digital transmission to the alarm unit
- Long line provided with built-in intermediate embedded connections, plus connector at extremities on demand
- Structure of the sense cable comprising a silicon sensing wire, a continuity wire, a communication wire (proprietary bus) and the power supply wires
- Protective external PE braid built on the cable
more information & related documents
Series Description
FG-OD AND FG-ODC are digital sense cables for the detection and location of liquid hydrocarbons and liquid insoluble in water and their vapors, along the entire length. They allow multiple leak detections and locations thanks to independent digital addressing, enabled by an embedded microchip in each FG-OD and FD-ODC sense cable. These sense cables are to be used with FG-NET, FG-ALS4-OD, FG-ALS8-OD, and FG-BBOX.
Kele Description
ADDRESSABLE DIGITAL HYRDOCARBON SENSE CABLE 22FT
Manufacturer
TTK USA
Related Documents
FG-OD Accessories Data Sheet TTK
