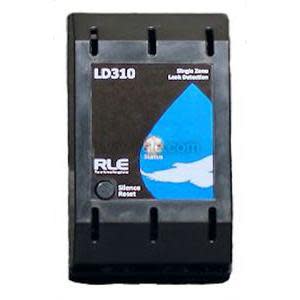

LD310-M | RLE Technologies | Leak
Single Zone Leak Detection Controller With Audible Alarm, Includes LC-Kit-M For Use With SC-C (Requires PSWA-DC-5 Or WA-DC-5-ST)
Brand:RLE Technologies
MPN:LD310-M
SKU:LD310-M
List Price:
$759.00
Today's Price:
$394.68
Log in for customized pricingproduct series specifications
- Supply Voltage:
- 5 VDC (± 10%) @ 100 mA
- Relay Type:
- Two Form C alarm relays (leak and fault)
- Relay Rating:
- 1 A @ 24 VDC, 0.5 A resisitive @ 120 VAC
- LED Indication:
- Normal Operation: Green; Cable Fault: Flashing Orange; Leak Detected: Flashing Red
- Response Time:
- <20 seconds, 10 sec typical
- Sensitivity:
- 3 jumper settings
- Audible Alarm:
- 85 db @ 4: w/enable, disable
- Operating Temperature:
- 32° to 122‚Ñâ (°0 to 50‚ÑÉ)
- Operating Humidity:
- 5 to 95% non-condensing
- Altitude Limits:
- 15,000 ft (4,572m) maximum
- Mounting:
- Surface mount
- Cable Length:
- 300 ft (91m) maximum of conductive fluid sensing cable or 210 ft (64m) of chemical sensing cable (req. LC-KIT-M)
- Dimensions:
- 2.7‚Ä=W x 4.4‚Ä=H x 1.38‚Ä=D
- :
- (6.8 x 11.2 x 3.5 cm)
- Approvals:
- CE, ETL, RoHS
- Weight:
- 0.2 lb (0.09 Kg)
- Warranty:
- 1 year
product series features
- Flexicble water sensing cable, dry contacts alarm fluid w/ fault detection
- Audible alert that is jumper selectable on/off
- Push-button switch allows users to test and reset the system and silence audible alarm
- Monitors up to 300 ft (91 m) of water sensing cable
more information & related documents
Series Description
The RLE Technologies LD310 cable-style water detector reports the presence of water within a predetermined zone. The LD310 is a single zone system with both a visual and audible alarm indicator as well as a separate output relay for leak and fault detection. The LD310 continuously monitors leak sensing cable and is ideal for small areas. If conductive fluid contacts the sensing cable anywhere along its length. If the sensing cable is cut or comes loose, the module will activate a cable fault by flashing the LED and activating a fault relay.
Kele Description
SEAHAWK SINGLE ZONE LEAK DET CONTROLLER
Manufacturer
RLE Technologies
Related Documents
LD310 Series Datasheet
