LC-KIT-REPLACEMENT | RLE Technologies | Leak

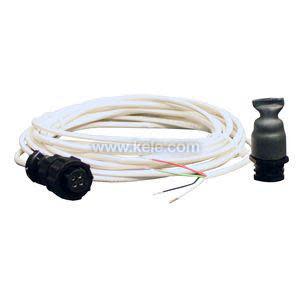

15 Leader Cable With End Of Line Connector
Brand:RLE Technologies
MPN:LC-KIT-REPLACEMENT
SKU:LC-KIT
product series specifications
- Cable Type:
- SC:
- Conductive fluid detection
- SC-C:
- Chemical detection
- SC-H:
- Hydrocarbon detection
- Bend Radius:
- SC-H:
- 0.75 in. (19.05mm) minimum
- Operating Temperature:
- SC:
- 32° to 167‚Ñâ (0° to 75‚ÑÉ)
- SC-C:
- -40° to 185‚Ñâ (-40° to 85‚ÑÉ)
- SC-H:
- -4° to 140‚Ñâ (-20° to 90‚ÑÉ)
- Dimensions:
- SC:
- Cable diameter: 0.25‚Ä= (6.4mm) Connector diameter: 0.96‚Ä= (24.4mm)
- SC-C:
- Cable diameter: 0.24‚Ä= (6.0mm) Connector diameter: 0.45‚Ä= (11.4mm)
- SC-H:
- Cable diameter: 0.28‚Ä= (7.0mm) Connector diameter: 0.45‚Ä= (11.4mm)
- Approvals:
- SC:
- CE, RoHS compliant, Plenum rated
- SC-C:
- UL, RoHS compliant, Plenum rated
- Weight:
- SC:
- 0.02 lb (0.009kg), 1 ft. (0.305m) length
- SC-C:
- 0.04 lb (0.02 Kg), 1 ft. (0.31 m) length
- SC-H:
- 0.05 lb (0.023kg), 1 ft. (0.305m) length
- Warranty:
- 1 year
product series features
- Resistant to bends and kinks
- Highly flexible
- Compatible with SeaHawk zone and distance-read leak detection controllers
- Available in standard and custom lengths
more information & related documents
Series Description
The RLE Technologies SeaHawk Sensing Cables reliably sense the presence of liquids in a wide variety of industrial, business, and residential settings. Sensing cables are durable, highly flexible, and resistant to bends and kinks. The Conductive Fluid Sensing Cable (SC Series) detects the presence of any conductive fluid. The Chemical Sensing Cable (SC-C Series) detects the presence of aqueous acids, bases, and other conductive fluids, including water. RLE's sensing cables are engineered to minimize false alarms, and are available in standard, custom, and bulk lengths. Use sensing cables in conjunction with RLE's SeaHawk zone or distance-read leak detection controllers to detect a leak along the length of the sensing cable. RLE controllers are supervised systems - not only do they locate leaks, but they also monitor the cable for contamination, breaks, and disconnects. RLE's sensing cables and controllers offer reliable leak detection solutions that mitigate potential damage, costly business outages, and downtime.
Kele Description
REPLACEMENT 15' LEADER CABLE W/END OF LINE CONNECTOR
Manufacturer
RLE Technologies
