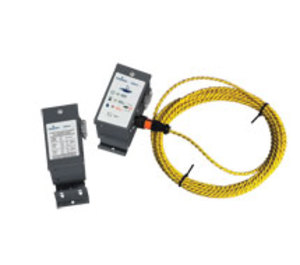

LT460-Z20 | Liebert | Leak
ZONE LEAK DETECTION KIT WITH 20 FOOT CABLE
Brand:Liebert
MPN:LT460-Z20
SKU:LT460-Z20
List Price:
$2,197.00
Today's Price:
$1,142.44
Log in for customized pricingproduct specifications
Application
Glycol, Chilled Water
Indication
Relay
Type
Cable
Cable Length
20 ft
Supply Voltage (Nominal)
24 VAC
product series specifications
Contact Rating: 2 Form-C; 3 A rating at 24 VAC
Operating Altitude: 0 to 10,000 ft (0 to 3,048 m)
Operating Humidity: 10% to 95% relative humidity (non-condensing)
Operating Temperature: 50°F to 104°F (10°C to 40°C)
Enclosure Rating: NEMA 1, IP 30
Dimensions: 5.35"W x 3.23"D x 3.5"H (135.9 x 82 x 88.9 mm)
Approvals: UL, C-UL, CE, FCC Compliance
Weight: 2.0 lbs (0.9kg)
Power Requirements: 24 VAC 120 mA, 50/60 Hz 3 VA (max.)
Sensing Cable Compatibility: All Liebert LT500 Sensing Cables
Maximum Length of Sensing Cable: 100ft (30.5m)
product series features
- Provides zone detection of leaks
- Ideal solution for perimeter sensing
- Alarming options
- Warns of any abnormal conditions
more information & related documents
Series Description
The Liqui-tect® 460 (LT460) provides zone detection of leaks, protecting equipment by constantly monitoring the area for leaking liquids. The LT460 is the ideal solution for perimeter sensing or serpentine coverage of areas requiring up to 100 feet of cable. Selectable modes of operation provide flexible alarming options and protection for the cable. The LT460 constantly monitors a zone for leaks, internal faults and power failures and warns of any abnormal conditions.
Kele Description
ZONE LEAK DETECTION KIT WITH 20 FOOT CABLE
Manufacturer
Liebert
Related Documents
Liebert LT460 Data Sheet
