EXT-XFMR | Liebert | Leak
EXTERNAL 24 VAC TRASNFORMER (40 VA)
Brand:Liebert
MPN:EXT-XFMR
SKU:EXT-XFMR
List Price:
$294.00
Today's Price:
$152.88
Log in for customized pricingproduct series specifications
- Mounting:
- Building Wall or Structural Member
- Dimensions:
- 14 1/4‚Ä=W x 2 3/4‚Ä=D x 12‚Ä=H (36.1 x 6.9 x 30.4 cm), 18‚Ä=W x 2 3/4‚Ä=D x 18‚Ä=H (45.7 x 6.9 x 45.7 cm)
- Approvals:
- No Transformer Module
- UL, UL3121, CE, FCC Compliance - CFR 47 Part 15, With Transformer Module:
- UL- UL3121, UL1012, CE, FCC Compliance - CFR 47 Part 15, With Transformer Module:
- UL- UL3121, UL1585, CE, FCC Compliance - CFR 47 Part 15:
- Weight:
- 7.68 lb (3.48kg), 20.56 lb (9.33 kg)
- Communication Protocol:
- Liebert SiteScan WebÆ IGM Protocol, 422
- Inputs & Outputs (Quantity):
- Cable Input (2) N/A
- Analog Output (2):
- 4-20mA signal output
- Alarm Output (4):
- 24VAC, 1A
- Liquid Crystal Display:
- Four line, 20 character, backlit
- Ambient Operating Environment:
- 32‚Ñâ to 104‚Ñâ (0‚ÑÉ to 40‚ÑÉ) 0% RH to 95% RH (non-condensing)
- Power Requirements:
- 24VAC ±10% of nominal 50/60 Hz, 0.3A, 8VA, 115VAC ±10% of nominal 60 Hz, 4A, 460VA, 230VAC ±10% of nominal; 50 Hz, 0.5A, 115VA
- Processor Specifics:
- Model MC68HC16Z1
- Clock Speed:
- 20MHz
- Total RAM:
- 128Kb
- Total FLASH:
- 256Kb
- Total NVRam:
- 32Kb
- A/D Resolution (Analog IN):
- 14 bits
- Clock Type:
- Real-Time Clock
- Clock battery backup type:
- Internal
- Clock battery life:
- 10 years, constant, no power
- Enclosure Type:
- NEMA 1
product series features
- Audible and visual alarms
- Adjustable sensitivity setpoints for leaks and contamination
- Continuous scrolling of data and history logs
- Connection to a building management system
- Automatic detection of broken cables and contaminated cables
- Retention of configuration after a power failure
more information & related documents
Series Description

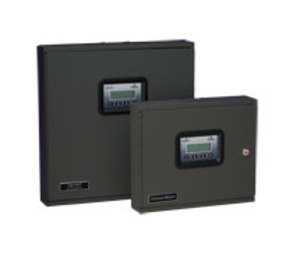

The Liebert Liqui-tect® Monitoring System is the ultimate in leak detection and retrofitting capabilities for computer rooms and other large areas. The Liebert Liqui-tect provides direct-read at the control unit location, as well as the ability to communicate with the Liebert SiteScan® Web enterprise monitoring system or a building management system. The Liebert Liqui-tect features an easy-to-use liquid crystal display (LCD) panel with readout of normal and alarm conditions, as well as leak location. Display and measurement modules are contained in a single compact package. The panel can monitor up to 10,000 ft. (3048m) of Liebert LT500Y leak detection cable, divided into two zones of up to 5,000 ft. (1524m) each.
Kele Description
EXTERNAL 24 VAC TRASNFORMER (40 VA)
Manufacturer
Liebert
Related Documents
Liebert Liquitect Data Sheet
