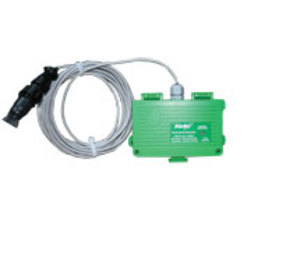

WD-2PR-10 | Kele | Leak
WATER DETECTOR WITH 10FT ROPE NO LEADER CABLE
Brand:Kele
MPN:WD-2PR-10
SKU:WD-2PR-10
List Price:
$417.00
Today's Price:
$216.84
Log in for customized pricing372 in stock
product specifications
Application
Water
Indication
LED
Type
Rope
Cable Length
10 ft
Supply Voltage (Nominal)
24 VAC, 24 VDC
product series specifications
- Supply Voltage:
- 11-27 VAC @ 2.4 VA; 11-27 VDC @ 60 mA
- Relay Output :
- 1 A @ 24 VAC/VDC, 1/2 A @ 120 VAC
- Relay Type:
- (2) SPDT
- Display:
- Green LED = Power
- :
- Red LED = Alarm
- Operating Temperature:
- Detector: 32° to 158°F (0° to 70°C) Tape: 32° to 180°F (0° to 82°C)
- Enclosure Rating:
- Plastic, NEMA 3R, weather resistant with adjustable legs
- Cable Rating:
- Plenum rated - (L2P(UL)
- Dimensions:
- 4.23"H x 3.75"W x 4.5"D (10.7 x 9.5 x 11.4 cm)
- Weight:
- WD-2PT:
- 0.98 lb (6.44 Kg) (without tape)
- WD-2PT-10:
- 1.8 lb (0.8 Kg)
- WD-2PT-25:
- 2.2 lb (1.0 Kg)
- WD-2PT-50:
- 3.0 lb (1.4 Kg)
- WD-2PT-100:
- 4.6 lb (2.1 Kg)
- Warranty:
- 1 year
product series features
- Weather resistant plastic enclosure
- Designed to minimize external noise pickup
- SPDT alarm and trouble relay contacts
- Relay action jumper selectable
- Power/Alarm/Trouble status LED (green, red, green/red)
- Floor or under-pipe mounting
- Able to convert to two alarm relays
more information & related documents
Series Description
The Kele Model WD-2PR rope style water detector uses a rope with dual sensing wires for dependable detection of conductive liquids anywhere. The Model WD-2PR includes a rope which activates a trouble output if the rope is unplugged, broken, or cut. Alarm relays may be independently jumpered to energize or de-energize upon water or trouble detection.
Kele Description
WATER DETECTOR WITH 10FT ROPE NO LEADER CABLE
Manufacturer
Kele
