WD-2-T-10 | Kele | Leak

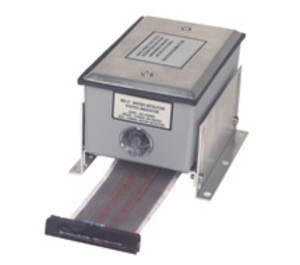

10' TAPE STYLE WATER DETECTOR

Brand:Kele

MPN:WD-2-T-10

SKU:WD-2-T-10

List Price:

$549.00

Today's Price:

$285.48

catalog page
80 in stock

product specifications

Application

Water

Indication

LED

Type

Tape

Cable Length

10 ft

Supply Voltage (Nominal)

24 VAC, 24 VDC

product series specifications

    Supply Voltage:
  • 11-27 VAC @ 2.4 VA; 11-27 VDC @ 60 mA
    Relay Type:
  • SPDT
    Relay Rating:
  • 1 A @ 24 VAC/VDC, 1/2 A @ 120 VAC
    Sensor Electrodes:
  • 3 mil copper fiber, 1/4" gap
    Display:
  • Green & Red LED
    Operating Temperature:
  • Detector: 32° to 158°F (0° to 70°C) Tape: 32° to 180°F (0° to 82°C)
    Enclosure Rating:
  • Cast aluminum, weather resistant; NEMA 4
    Dimensions:
  • 4.23"H x 3.75"W x 4.5"D (10.7 x 9.5 x 11.4 cm)
    Weight:
    WD-2:
  • 0.98 lb (6.44 Kg) (without tape)
    WD-2-T-10:
  • 1.8 lb (0.8 Kg)
    WD-2-T-25:
  • 2.2 lb (1.0 Kg)
    WD-2-T-50:
  • 3.0 lb (1.4 Kg)
    WD-2-T-100:
  • 4.6 lb (2.1 Kg)
    Approvals :
  • CE
    Warranty:
  • 1 year

product series features

  • Weather resistant enclosure
  • Designed to minimize external noise pickup
  • SPDT alarm and trouble relay contacts
  • Relay action jumper selectable
  • Continuous tape integrity self-check
  • Power/Alarm/Trouble status LED (green, red, green/red)
  • Sensor tape lengths of 10 ft (3.1m), 25 ft (7.6m), 50 ft (15.2m), 100 ft (30.5m)
  • Floor or under-pipe mounting
  • Able to convert to two alarm relays

more information & related documents

Series Description

The Model WD-2-T tape style water detector uses a self-adhesive sensor tape with copper fiber electrodes and a durable netted cover for dependable detection of conductive liquids anywhere along the length of tape. The Model WD-2-T is ideal for HVAC and Building Automation System, BAS, applications. It includes a tape integrity self-check feature, which activates a trouble output if the tape is unplugged, broken, or cut. Alarm relays may be independently jumpered to energize or de-energize upon water or trouble detection.

Kele Description

10' TAPE STYLE WATER DETECTOR

Manufacturer

Kele
