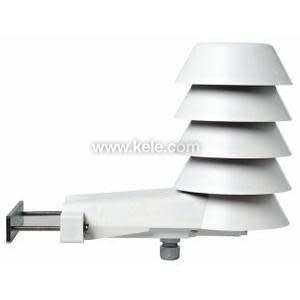

HMS82W | Vaisala | Humidity

Relative Humidity Transmitter, Outside Air (OSA), Wet Bulb/Dry Bulb

Brand:Vaisala

MPN:HMS82W

SKU:HMS82W

List Price:

$1,353.00

Today's Price:

$703.56

1 in stock

product specifications

Accessory

DCPA-1.2, DCP-1.5-W, T81U-XR, T85U-XR, UR

Enclosure Rating

IP65

Feature

Wet Bulb, Dry Bulb

Accuracy

3%

Application

Outdoor Air Humidity, Economizer Control, Psychrometric Calculations, Enthalpy, Dew Point, Wash Down Applications

Housing Material

Poly

Mount

OSA

Output

4 - 20 mA

Sensor Element

1K Platinum RTD 385

Temperature Range

-40 to 140 °F (-40 to 60 °C)

Power Requirements

24 VAC/VDC

product series specifications

Accuracy:

Dew Point, Wet Bulb & Dry Bulb: ±1.8°F (1.0°C)

Enthalpy: ±2 BTU/lb

Relative Humidity: ±3% RH

Supply Voltage: 10 - 28 VDC

Signal Output: (2, Dry Bulb Temperature & Model Specific) 4-20 mA @ 600O

Measurement Range:

Dew Point, Wet Bulb & Dry Bulb: -40° to 140°F (-40° to 60°C)

Enthalpy: -10 to 190 BTU/lb (-40 to 460 kj/hg)

Relative Humidity: 0 to 100%

Sensing Technology: Viasal Intercap®

Operating Conditions:

Temperature: -40° to 140°F (-40° to 60°C)

Humidity: 0 to 99 % non-condensing

Dimensions:

Duct: 5.2" H x 2.8" W x 11.5" D (13.1 x 7.2 x 29.1 cm)

OSA: 8.1" H x 4.8" W x 3.9" D (20.7 x 12.2 x 10 cm)

Room: 7.6" H x 2.8" W x 1.6" D (19.3 x 7.2 x 4.1 cm)

Enclosure Rating: NEMA 4, IP65

Approvals: CE

Weight:

Duct: 0.65 lb (0.29 Kg)

OSA: 1.6 lb (0.72 Kg)

Room: 0.25 lb (0.11 Kg)

Warranty: 2 years

product series features

  • Dew point, Wet Bulb and Dry Bulb accuracy of ±1.8 degrees F (±1 degrees C) over the specified range
  • Enthalpy accuracy of ±2 BTU/lb over specified range
  • Two 4-20 mA output signals
  • Microprocessor-based signal processing
  • Weather resistant duct/OSA mounting
  • Temperature compensated

more information & related documents

Series Description

The Vaisala HMX8XD Dew Point, HMX8XW Wet Bulb, and HMX8XH Series Enthalpy Transmitters are rugged, compact, and ideally suited for monitoring dew point, wet bulb, or enthalpy in commercial HVAC/BAS applications. Using a Vaisala Intercap® RH sensor and an RTD temperature sensor, the unit's microprocessor computes the dew point, wet bulb, or enthalpy. Two linear outputs provide a 4-20mA signal for dew point, wet bulb, or enthalpy, and a 4-20 mA signal for dry bulb, temperature.

Kele Description

OSA WET BULB/DRY BULB XMTR

Manufacturer

Vaisala
