HW2XA2A | Veris | Humidity

SENSOR, HUMIDITY, WALL, 2% ACCURACY, ACCURACY, TEMP TRANSMITTER

Brand:Veris

MPN:HW2XA2A

SKU:HW2XA2A

List Price:

$384.00

Today's Price:

$199.68

6 in stock

product specifications

Accuracy

2%

Application

Humidification, Dehumidification, Monitoring Indoor Space Humidity, Clean Rooms, Hospitals, Process Control, Laboratories,Museums, Schools, Office Buildings, Data Centers, ESD (Anti-Static) Control

Mount

Room

Output

4 - 20 mA

Power Requirements

24 VAC/VDC

product series specifications

Operating Environment

Input Power: Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz

Analog Output: Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V

Operating Temperature Range: 0 to 50°C (32 to 122°F)

Operating Humidity Range: 0 to 95% RH non-condensing

Housing material: High-impact ABS plastic

Terminal Block Torque: 0.5 to 0.6 N-m (0.37 to 0.44 in-lbf)

RH Transmiter

HS Sensor: Thin-film capacitive, replaceable

Accuracy: ±2% from 10 to 80% RH @ 25°C (77 F)

Hysteresis: 1.5% typical

Stability: ±1% @ 20°C (68°F) annually for 2 years

Output Range: 0 to 100% RH

Temperature Coefficient: ±0.1% RH/°C above or below 25°C

(77°F) typical

Temperature Transmitter Option

Sensor Type: Solid state, integrated circuit

Accuracy: ±0.2C (±0.4°F) typical

Resolution: 0.1°C (0.1°F)

Range: 0 to 50°C (32 to 122°F)

Display Models:

Touchscreen:61 mm (2.4 in), color, backlit, capacitive, 240x300 px

Setpoint: 0-10Vdc. Temperature, humidity or fan speed selectable

Timeout override: Display timeout*

Lockout override: Touchscreen/button lockout*

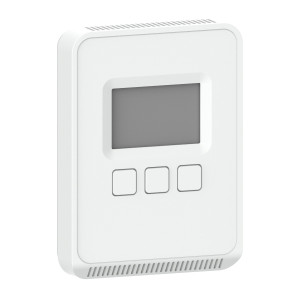

LCD:52mm (2.05 in), segmented with 3 buttons

Setpoint: 0-10Vdc. Temperature, humidity or fan speed selectable

Timeout override: Display timeout*

Lockout override: Touchscreen/button lockout*

Wiring Terminals: Terminal Blocks Screw terminals, 18-24 AWG

Screw Terminal Torque 0.2 N-m (2.0 in-lbF) max.

Warranty: Limited Warranty 5 years

product series features

  • Sensor element
  • Interchangeable element
  • Flexible
  • Field replaceable
  • Easy to install
  • Calibration free

more information & related documents

Series Description

The Veris HW2 Series of humidity sensors for living space is a flexible multi-sensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, or 0 to 10Vdc outputs. The HW2 Series sensors are available with three user interface options: touchscreen, LCD with three buttons, and blank. Humidity and temperature sensors are included with all HW2 Series sensors.

Kele Description

SENSOR, HUMIDITY, WALL, 2% ACCURACY, ACCURACY, TEMP TRANSMITTER

Manufacturer

Veris
