KHR2-T24 | Kele | Humidity

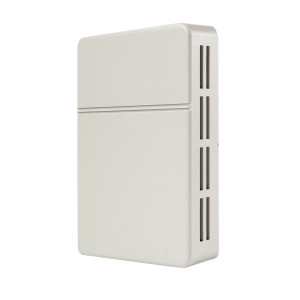

Wall Mounted Room/Space 2% Humidity Transmitter, 10,000Ω Thermistor @ 77˚F (25˚C), Type II, No Options

Brand:Kele

MPN:KHR2-T24

SKU:KHR2-T24

List Price:

$339.00

Today's Price:

$176.28

27 available to build

product specifications

Accessory

DCPA-1.2, DCP-1.5-W, UR

Enclosure Rating

NEMA 1

Accuracy

2%

Application

Humidification, Dehumidification, Monitoring Indoor Space Humidity, Clean Rooms, Hospitals, Process Control, Laboratories,Museums, Schools, Office Buildings, Data Centers, ESD (Anti-Static) Control

Housing Material

Poly

Mount

Room

Output

4 - 20 mA

Sensor Element

10K Type 2 Thermistor

Power Requirements

24 VAC/VDC

product series specifications

Accuracy:2% or3% RH @ 73°F from 5% to 90% RH; (0%-5% & 90%-100%) add 4%

Drift: <±0.5% per year

Thermal Effect: 0.07% / °F

Supply Voltage: 9.5-28 VDC, Loop powered

Signal Output: 4-20 mA @ 725O at 24 VDC, Passive temperature output: All Kele standard thermistors and RTDs

Sensing Technology: capacitive

Operating Temperature: -20° to 158°F (-29° to 70°C)

Operating Humidity: 0-100% Non-condensing

Enclosure Rating:

KHR: NEMA 1, White plastic, UL94HB

KHD: NEMA 1, Metal handy box

KHO: NEMA 3R, plastic box

Probe:

Duct: Probe: 1/2" aluminum tube with HDPE FGX filter; 6" (15 cm) long

OSA: Probe: 1/2" aluminum tube with HDPE FGX filter

Wiring Terminations: Screw terminals

Weight (without options):

KHR : 0.21 lb (0.09 Kg)

KHD : 1.2 lb (0.59 Kg)

KHO : 0.52 lb (0.24 Kg)

Approvals : RoHS

Warranty: 1 year

product series features

  • 0% to 100% RH measurement
  • 2% accuracy (5% to 90% RH)
  • Attractive room enclosure design
  • Two-wire, 4-20 mA output

more information & related documents

Series Description

The Kele KHR, KHD, and KHO Series humidity transmitters are specifically designed for use in HVAC/BAS applications. These instruments measure relative humidity from 0% to 100%. The standard two-wire, 4-20 mA output provides low-cost humidity monitoring for building control. The RH transmitters are available with thermistor or RTD temperature sensors. They come in room (KHR), duct (KHD), and OSA (KHO) mounting styles.

Kele Description

2% WALL MOUNT RH XMTR W/TEMP 10K 2 OHM THMS

Manufacturer

Kele
