HMW92D | Kele | Humidity

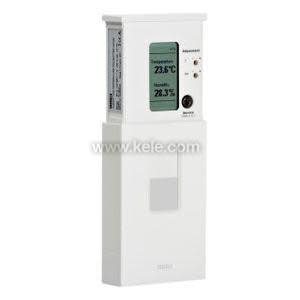

Humidity and Temperature Transmitter, Current Output, with Display

Brand:Kele

MPN:HMW92D

SKU:HMW92D

List Price:

$1,580.00

Today's Price:

$821.60

326 in stock

product datasheet

installation instructions

catalog page

product specifications

Accessory

219980 CABLE

Enclosure Rating

IP30

Accuracy

1.7%

Housing Material

Poly

Mount

Room

Output

4 - 20 mA

Display

LCD

Power Requirements

24 VAC/VDC

product series specifications

Accuracy: ±1.7% RH @ 50° to 104°F (10° to 40°C) from 0 to 90% RH

Stability: ±0.5% RH/year

Supply Voltage:

HMW92: 10 to 28 VDC

HMW93: 18 to 35 VDC, 24 VAC ±20%, 50/60 Hz

Signal Output:

HMW92: 4-20 mA @ 700O

HMW93: 0 to 5/10 VDC (dipswitch selectable)

Measurement Range RH: 0 to 100%

Relay Type (93 model only): SPST

Relay Output (93 model only): 50 VAC/VDC @ 0.5 A

Sensing Technology: HUMICAP® 180R

Operating Temperature: 23° to 131°F (-5° to 55°C)

Enclosure Rating: NEMA 1, IP30, UL-V0, ABS/PC

Wiring Terminations: Screw terminals

Dimensions: 5.22"H X 3.19"W X 1.18"D (13.27 X 8.1 X 3.0 cm)

Approvals: CE

Weight: 0.34 lb (0.16 Kg)

Warranty: 2 years

product series features

Easy installation, configuration and field adjustment
±1.7% accuracy
Optional relay (HMW93 only)
NIST calibration certificate included
Long term stability with HUMICAP® 180R sensor

more information & related documents

Series Description

The wall-mounted Vaisala HMW90 Series HUMICAP® humidity and temperature transmitters measure the relative humidity and temperature of indoor environments, where high accuracy, stability, and reliable operation are required. The HMW90 Series includes models for both current and voltage output. These flexible transmitters offer a variety of options and features. Transmitters are available with an optional display. The HMW90 Series humidity transmitters are quick and easy to install. The wiring is connected secured to the wall through the back plate and the electronics with the sensors can then be easily snapped on. Dip switches for transmitter configuration can be accessed when the enclosure is open.

Kele Description

1.7% RH TEMPERATURE TRANS 4-20 MA W/DISPLAY

Manufacturer

Kele
