BA/10K-2-H200-RD | BAPI | Humidity

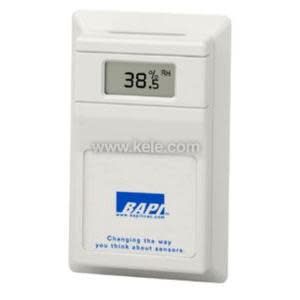

10K-2 Thermistor, ±2% Humidity Transmitter with Interchangeable Output of 0 to 5 V or 4 to 20 mA, Room with Display
Brand:BAPI
MPN:BA/10K-2-H200-RD
SKU:BA/10K2H200RD
product specifications
Accessory
DCPA-1.2, DCP-1.5-W, T81U-XR, T85U-XR, UR
Enclosure Rating
NEMA 1
Accuracy
2%
Application
Humidification, Dehumidification, Monitoring Indoor Space Humidity, Clean Rooms, Hospitals, Process Control, Laboratories,Museums, Schools, Office Buildings, Data Centers, ESD (Anti-Static) Control
Housing Material
Poly
Mount
Room
Output
0 - 5 VDC
Sensor Element
10K Type 2 Thermistor
Display
LCD
Power Requirements
24 VAC/VDC
product series specifications
Accuracy: 2% from 20% to 95% RH
Supply Voltage: 15-28 VAC/VDC
Signal Output: 4-20 mA @ 700O, 0-5/10 VDC @ 10kO min
Sensing Technology: Resistive with ceramic substrate
Sensor Protection:
Room: Room Gore-Tex®
Duct/OSA: 80 micron stainless steel sintered filter
Operating Humidity: 0-100%, non-condensing
Operating Temperature:
Room: 32° to 122°F (0° to 50°C)
Duct/OSA: -40° to 158°F (-40° to 70°C)
Enclosure Rating:
Room: BAPI stat 4/Delta: NEMA 1, ABS Plastic, UL94V-0
Duct/OSA:
BAPIBox (BB): NEMA 4, IP66, UV resistant polycarbonate
BAPIBox II (BB2): NEMA 4,IP66, UV resistant polycarbonate
WP: NEMA 3R, Weatherproof, cast aluminum
Wiring Terminations: Four wire, 16 to 22 AWG terminals
Weight:
Room: 0.25 lb (0.11 Kg)
OSA/Duct:
BB/BB2: 1.0 lb (0.45 Kg)
WP: 1.3 lb (0.59 Kg)
Approvals: CE, RoHS
Warranty: 2 years
product series features
- Popular room housing
- 2% Accuracy
- Duct and OSA NEMA 4 housing
- 24 VDC or 24 VAC power (field-selectable)
- 4-20 mA, 0-10V, or 0-5V signal (field-selectable)
- Field calibratable
- Optional temperature sensor available
- Optional room display
- Optional setpoint available
- Optional override button available
more information & related documents
Series Description
The BAPI BA/H200 Series ±2% accuracy humidity transmitters from BAPI are designed specifically for HVAC systems. Room sensors are available in the traditional Delta style enclosure or the new BAPI STAT 4. All Duct Units feature medical-grade closed cell foam to seal the probe insertion hole and to absorb vibration. All Outside Air Units have etched Teflon leadwires and are built to withstand high humidity and condensation and perform under real world conditions. Duct and OSA units are available in weatherproof enclosures selectable from IP66 or NEMA 3R. RH transmitter outputs include 4-20 mA, 0-5V, and 0-10V with replaceable sensor tips.
Kele Description
2% DELTA RM RH 4-20MA XMTR W/DSPLY 10K2 THMS
Manufacturer
BAPI
Related Documents
BAH200 DATA SHEET
