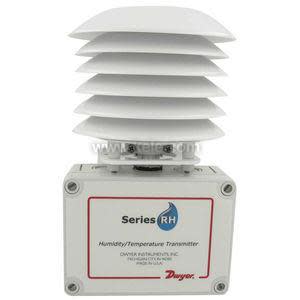

RHP-2R1B | Dwyer Instruments | Humidity
Relative Humidity, Passive Temperature Sensor Transmitter, 2%, Radiation Shield, 4-20 mA RH Output, 10K @ 25°C Thermistor Type II, No Options
Brand:Dwyer Instruments
MPN:RHP-2R1B
SKU:RHP-2R1B
product specifications
Accuracy
2%
Housing Material
Poly
Sensor Element
10K Type 2 Thermistor
Output
4 - 20 mA
Power Requirements
24 VAC,24 VDC
Accessory
DCPA-1.2,DCP-1.5-W,UR
Application
Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
Mount
OSA
product series features
- Robust capacitance humidity sensor
- Models with LCD display
- Interchangeable filter and replaceable sensor options
more information & related documents
Series Description
The Dwyer Series RHP Temperature and Humidity Transmitter combine the voltage or current humidity transmitter output with a passive temperature thermistor or RTD output. The polymer capacitance humidity sensor is not affected by condensation, fog, high humidity, or contaminants. The humidity sensors are available with 2% or 3% accuracies. Duct mounted transmitters are available with an optional two-line alpha numeric LCD display. The Series RHP is available with interchangeable filter options as well as replaceable sensors.
Kele Description
2% OSA W/RS RH/TEMP XMITER 4-20MA 10K II
Manufacturer
Dwyer Instruments
Related Documents
RHP-W Installation manual
