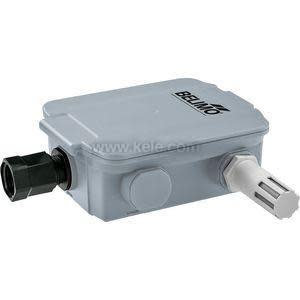

22UTH-510Q | Belimo | Humidity

Measuring Range: Temperature Active sensor: range selectable Attention: Max. measuring temperature is restricted by max. medium temperature (see Safety data)

Setting range [°C] range [°F] Factory setting:

S0 -40°C to 60°C -40°F to 160°F

S1 0°C to 50°C 40°F to 140°F

S2 -15°C to 35°C 0°F to 100°F

S3 -20°C to 80°C 0°F to 200°F

Absolute Humidity adjustable at the transducer: 0 to 50 g/m≥ (default setting), 0 to 80 g/m≥

Enthalpy: 0 to 85 kJ/kg

Dew Point adjustable at the transducer: 40°F to 140°F [0°C to 50°C] (default setting), 0°F to 200°F [-20°C to 80°C]

Accuracy:

Humidity ±2% between 10 to 90% RH @ 70°F [21°C]

Temperature ±0.9°F @ 77°F [±0.5°C @ 25°C]

Supply Voltage:

22UTH-51X 15-24 VDC, ±10%, 0.3 W; 24 VAC, ±10%, 0.5 VA

22UTH-53 4-20 mA

22UTH-550X 15-24 VDC, ±10%, 0.7 W; 24 VAC, ±10%, 1.8 VA

22UTH-560X 15-24 VDC, ±10%, 0.7 W; 24 VAC, ±10%, 1.8 VA

Signal Output (Active Temperature):

22UTH-51 DC 0-5V, DC 0-10V

22UTH-53 4-20 mA

22UTH-550X, 560X DC 0-5V, DC 0-10V

Signal Output (Active Humidity):

22UTH-51x DC 0-5V, DC 0-10V

22UTH-53x 4-20 mA

22UTH-550X, 560X DC 0-5V, DC 0-10V

Signal Output (Passive Temperature):

22UTH-510B PT1000

22UTH-510E Ni1000 (JCI)

22UTH-510L NTC10k2

22UTH-510M NTC10k3

22UTH-510Q NTC20k

22UTH-530B PT1000

22UTH-530E Ni1000 (JCI)

22UTH-530L NTC10k2

22UTH-530M NTC10k3

22UTH-530Q NTC20k

Sensing Technology: Polymer capacitive sensor with stainless steel wire mesh

Operating Humidity: 0 to 100% RH non-condensing

Operating Temperature: -30°F to 120°F [-35°C to 50°C]

Enclosure: NEMA 4X/ IP65

Dimensions: 6.14"x 5.32"x 2.27"

Approvals: ISO 9001, UL 2043, UL 50

Weight: 0.21 lbs

22UTH-510X 0.24 lbs

22UTH-530X 0.24 lbs

22UTH-550X 0.24 lbs

22UTH-560X 0.24 lbs

Warranty: 5 years
