BA/10K-2-H300-O-BB | BAPI | Humidity

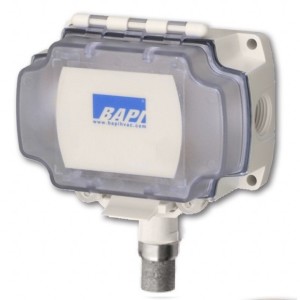

10K-2 Thermistor, ±3% Humidity Transmitter with Interchangeable Output of 0 to 5 V or 4 to 20 mA, Outside Air, BAPI Box
Brand:BAPI
MPN:BA/10K-2-H300-O-BB
SKU:BA/10K2H300OBB
List Price:
$409.74
Today's Price:
$213.06
Log in for customized pricingproduct specifications
Accuracy
3%
Housing Material
Poly
Sensor Element
10K Type 2 Thermistor
Output
0 - 5 VDC
Enclosure Rating
NEMA 4
Power Requirements
24 VAC,24 VDC
Accessory
DCPA-1.2,DCP-1.5-W,T81U-XR,T85U-XR,UR
Application
Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
Mount
OSA
product series specifications
Accuracy: 3%, from 20% to 95% RH
Supply Voltage: 15-28 VAC/VDC
Signal Output: 4-20 mA @ 700Ω, 0-5/10 VDC @ 10kΩ min
Sensing Technology: Resistive with ceramic substrate
Sensor Protection:
Room: Room Gore-Tex®
Duct/OSA: 80 micron stainless steel sintered filter
Operating Humidity: 0-100%, non-condensing
Operating Temperature:
Room: 32° to 122°F (0° to 50°C)
Duct/OSA: -40° to 158°F (-40° to 70°C)
Enclosure:
Room: ABS Plastic, UL94V-0
Duct/OSA:
BAPIBox (BB): IP66 rated UV resistant polycarbonate
BAPIBox II (BB2): IP66 rated, UV resistant polycarbonate
WP: Weather Proof, NEMA 3R, Cast aluminum
Wiring Terminations: Four wire, 16 to 26 AWG terminals
Weight:
Room: 0.25 lb (0.11 Kg)
Duct/OSA:
BB/BB2: 1.0 lb (0.45 Kg)
WP: 1.3 lb (0.55 Kg)
Approvals: CE, RoHS
Warranty: 2 years
product series features
- Popular room housing
- Accuracies of 2%, 3% or 5%
- Three-year warranty
- Duct and OSA twist-off NEMA 4 housing
- 24 VDC or 24 VAC power (field-selectable)
- 4-20 mA, 0-10V, or 0-5V signal (field-selectable)
- Field calibratable
- Optional temperature sensor
more information & related documents
Series Description
The BAPI BA/H Series 3% accuracy humidity transmitters are designed specifically for HVAC/BAS applications. The room transmitters use Delta or BAPI-Stat II enclosures with optional communication jacks. All duct and OSA units come in weatherproof enclosures selectable for NEMA 3R or IP66 applications. All BA/H transmitters have optional temperature sensors or temperature transmitters. Transmitter outputs include 4-20mA, 0-5V ad 0-10V with replaceable sensors.
Kele Description
3% OSA RH 4/20MA XMTR BAPI BOX W/T 10K OHM 2 THMS
Manufacturer
BAPI
BAPI Duct Humidity Datasheet
